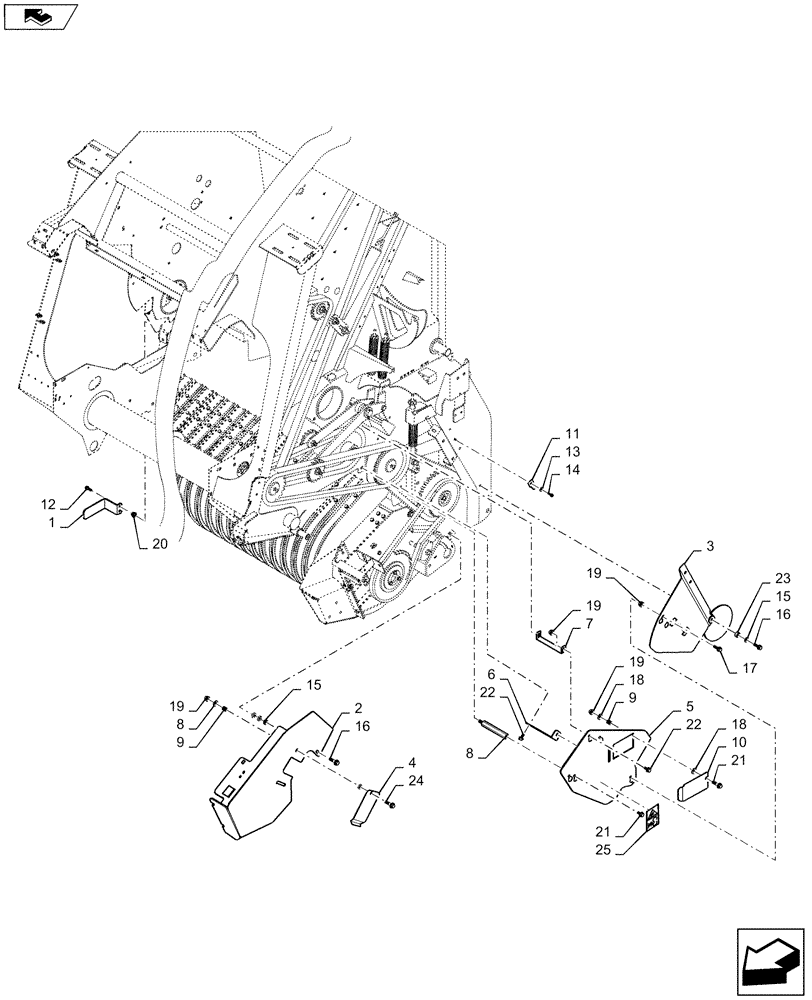

Запчасти Case IH RB565 (90.105.AS[01]) - VAR - 726861 - 1.5M STANDARD PICKUP SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84594639

BRACKET

1шт.

2

84371052

SHIELD

LH

1шт.

3

47470623

SHIELD

1шт.

4

47364371

SHIELD

1шт.

5

47470374

SHIELD

1шт.

6

47470391

MOUNT

1шт.

7

47394554

BRACKET

1шт.

8

47394340

SHAFT

1шт.

9

11104

SPRING

2шт.

10

47364371

SHIELD

1шт.

11

47325

CLIP

1шт.

12

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

13

280254

LOCK WASHER,5.18mm ID x 9.68mm OD x 0.64mm Thk

1шт.

14

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

1шт.

15

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

16

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

17

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

18

87362

WASHER,5/16" SAE

4шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

20

86610198

INSERT,M6 x 1

2шт.

21

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

23

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

1шт.

24

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

25

84004734

WARNING DECAL

1шт.
