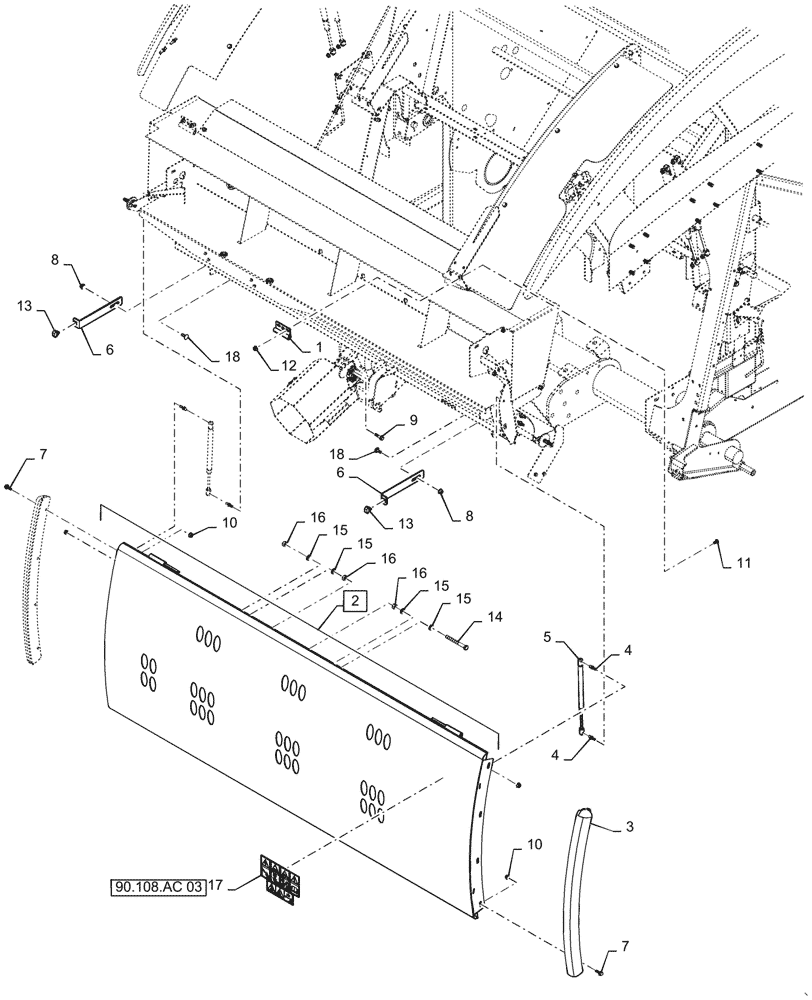

Запчасти Case IH RB565 (90.105.AN) - FRONT SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84133414

ROD

Hinge

1шт.

2

47564790

DOOR

Front, Incl 17, Serial Range: -YFN188618

1шт.

2

47973213

DOOR

Front, Incl 17, Start Serial: YFN188619

1шт.

3

84384384

DOOR SILL MOULDING

2шт.

4

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

4шт.

5

47532837

GAS STRUT

2шт.

6

47483296

BRACKET

2шт.

7

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

9

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

10

86619801

FLANGE NUT,M8 x 1.25, Cl 8

6шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

128104

BUMPER

2шт.

14

1570477

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

1шт.

15

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

16

9706685

NUT,M12 x 1.75, Cl 8

3шт.

17

47404857

DANGER DECAL

Assembly

1шт.

18

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.
