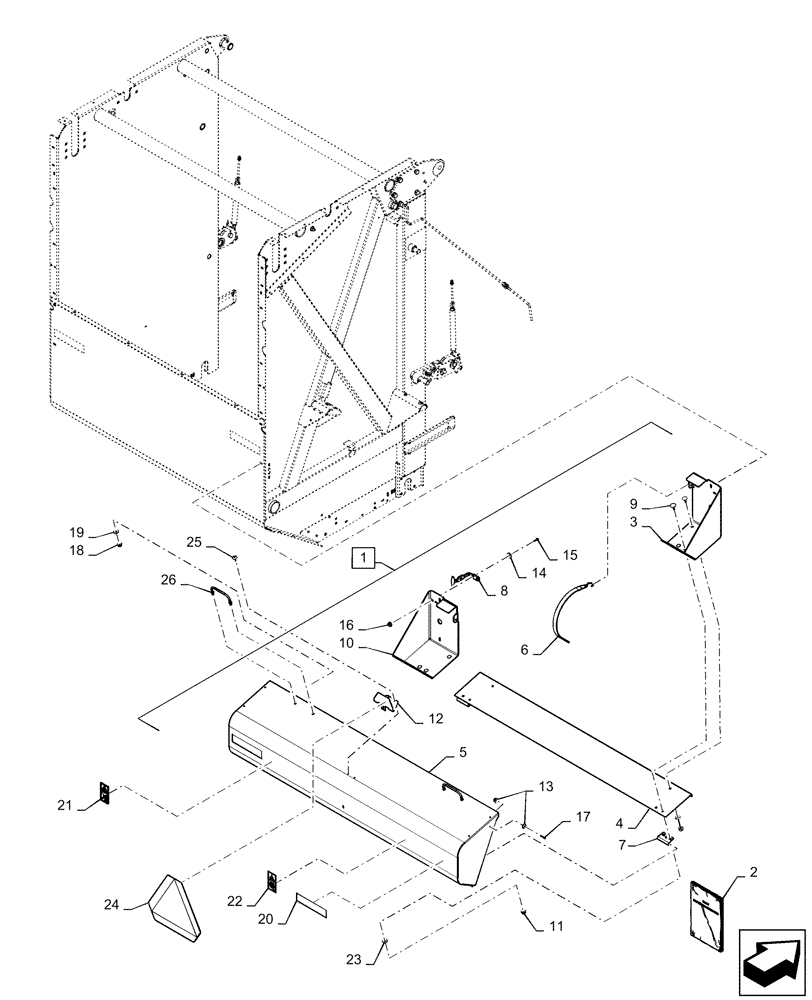

Запчасти Case IH RB565 (88.100.90[01]) - DIA KIT, REAR NET BOX (88) - ACCESSORIES

1

47419348

DIA KIT, HARVESTER

Rear Net Storage, Incl 2 - 17

1шт.

2

84554565

INSTRUCTION

1шт.

3

47575021

SUPPORT

RH

1шт.

4

47572787

FLOOR

1шт.

5

84599340

LID

1шт.

6

87020998

STRAP

2шт.

7

84133414

ROD

2шт.

8

86000448

LATCH

2шт.

9

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

6шт.

10

47574977

SUPPORT

LH

1шт.

11

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

4шт.

12

47554490

PLATE

SMV

1шт.

13

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

14

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

15

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

16

86619800

FLANGE NUT,M6 x 1, Cl 8

LH

4шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

RH

2шт.

18

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

21

86516139

CAUTION DECAL

1шт.

22

47361241

WARNING DECAL

1шт.

23

412328

WASHER

6шт.

24

86547710

EMBLEM

1шт.

25

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

2шт.

26

86556031

HANDLE

2шт.
