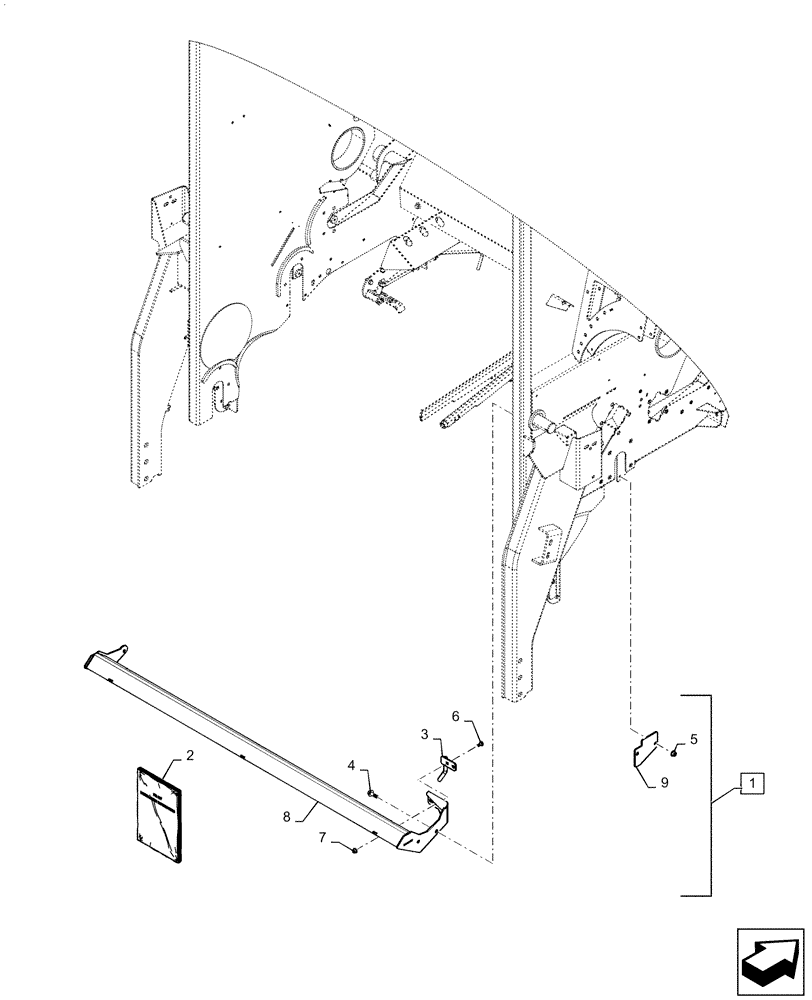

Запчасти Case IH RB565 (88.100.62[06]) - DIA KIT, TWINE STRAW (88) - ACCESSORIES

1

47950194

DIA KIT, HARVESTER

Twine Straw, Incl 2 - 9

1шт.

2

47951741

INSTRUCTION

1шт.

3

47822347

MOUNT

1шт.

4

9840672

BOLT,Hex Serr Flg, M10 x 30mm

4шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

47950193

BAR

1шт.

9

47822382

PLATE

2шт.
