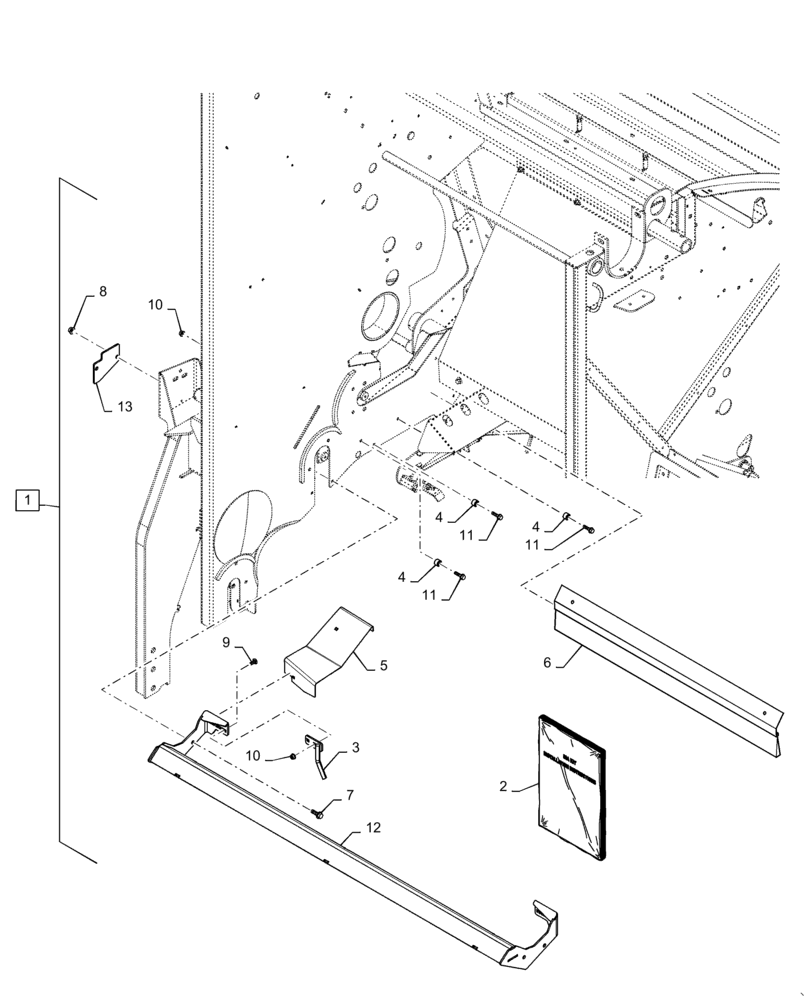

Запчасти Case IH RB565 (88.100.62[06]) - DIA KIT, STRAW BULGE (88) - ACCESSORIES

1

47822387

DIA KIT, HARVESTER

Twine Straw, Incl 2 - 13

1шт.

2

47824840

INSTRUCTION

1шт.

3

47822347

MOUNT

2шт.

4

853070

SPACER,10.2mm ID x 19mm OD x 13mm Thk

3шт.

5

47770524

SHIELD

Twine Straw

1шт.

6

84528401

BRUSH

Twine Straw

1шт.

7

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

9

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

11

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

3шт.

12

47768409

BAR

Bulge

1шт.

13

47822382

PLATE

2шт.
