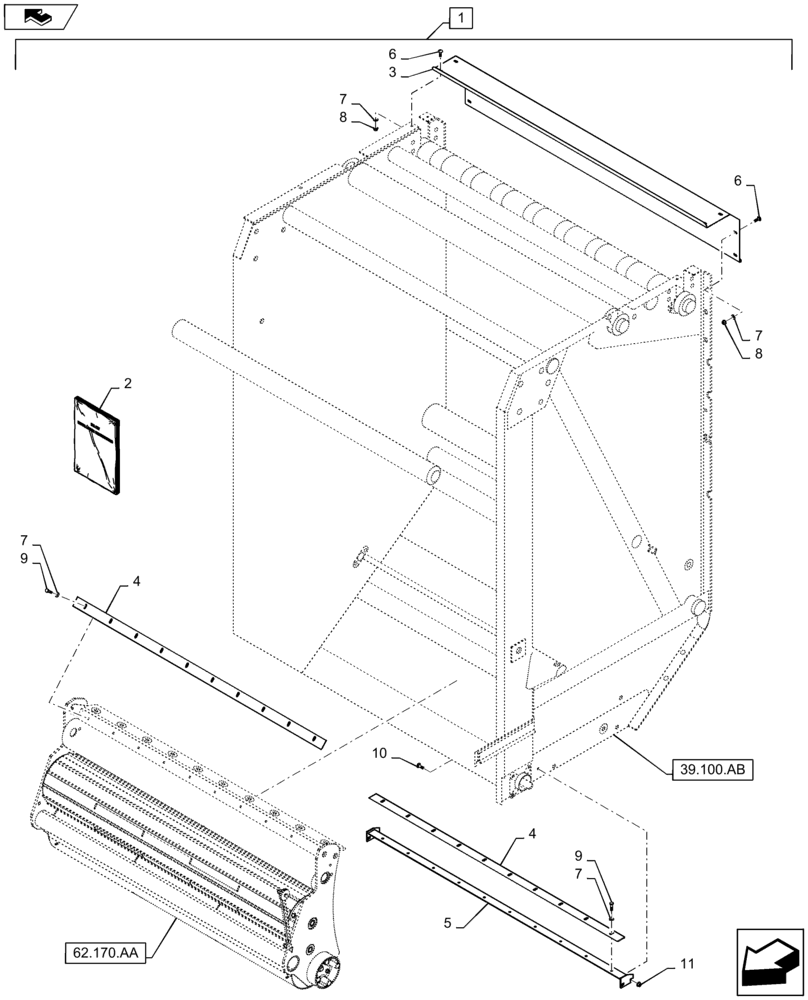

Запчасти Case IH RB565 (88.100.62[04]) - DIA KIT, HIGH MOISTURE (88) - ACCESSORIES

1

47465658

DIA KIT, HARVESTER

High Moisture Incl 2 - 13

1шт.

2

84401905

INSTRUCTION

1шт.

3

47465281

SUPPORT

1шт.

4

86637004

SCRAPER BLADE

2шт.

5

47761419

SUPPORT

1шт.

6

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

18шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

9

381014

SCREW,Flng, M8 x 16mm

10шт.

10

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

10шт.
