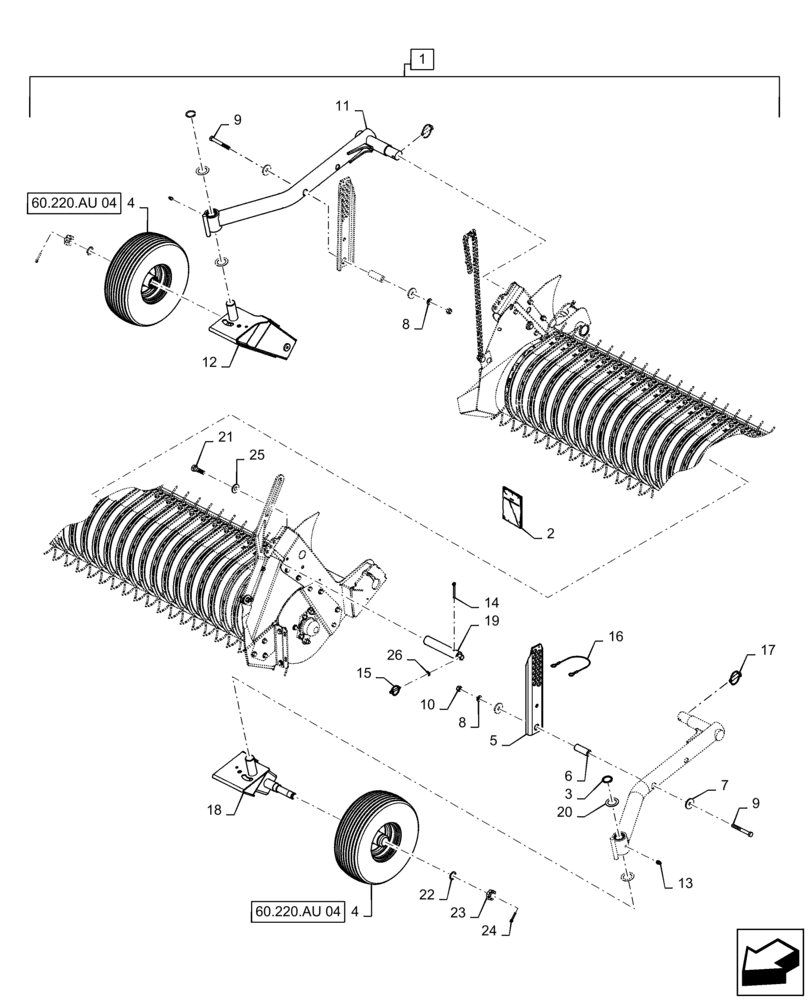

Запчасти Case IH RB565 (88.100.60[07]) - DIA KIT, DUAL CASTERING WHEEL (88) - ACCESSORIES

1

47459845

DIA KIT, HARVESTER

Dual Castering Wheel, Incl 2 - 26

1шт.

2

47583684

INSTRUCTION

1шт.

3

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

4

86606742

WHEEL ASSY

2шт.

5

84337334

CHANNEL

2шт.

6

84220857

SPACER,12.7mm ID x 25.4mm OD x 70.5mm L

2шт.

7

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

9

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

10

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

11

84562237

ARM

2шт.

12

84567928

FORK

1шт.

13

87414

LUBE NIPPLE,1/4" - 28

2шт.

14

87400

COTTER PIN,3/16" x 2"

2шт.

15

270184

LINCH PIN,6.35mm OD

2шт.

16

47431237

WIRE ROPE

2шт.

17

87056822

PIN

2шт.

18

84567999

FORK

1шт.

19

84479182

PIN,35mm OD x 207mm L

2шт.

20

9839046

WASHER,35.mm ID X 53mm OD X 2mm Thk

4шт.

21

9509260

LOCK BOLT,Hex, M12 x 40mm, Cl 8.8

2шт.

22

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

2шт.

23

603373

JAM NUT,Slotted, 1" - 14, Gr 2

2шт.

24

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

25

14408

WASHER,0.56" ID x 1.25" OD x 0.13" Thk

2шт.

26

84012277

KEY RING

2шт.
