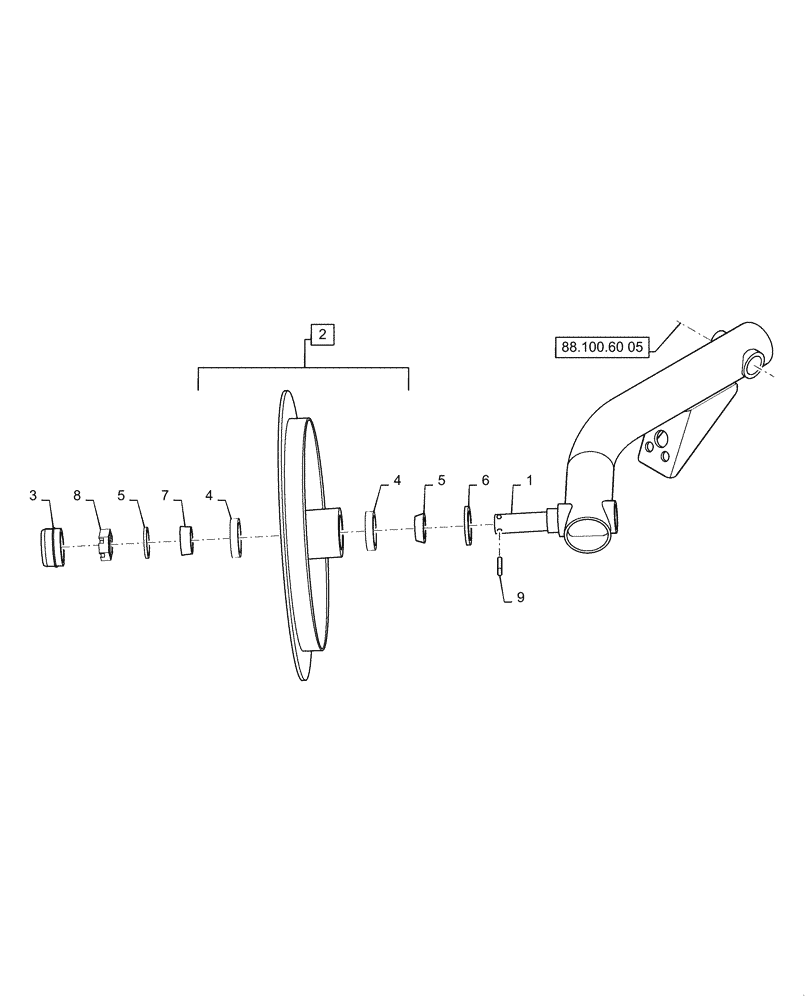

Запчасти Case IH RB565 (88.100.60[06]) - DIA KIT, GATHERING WHEEL ARM ASSEMBLY (88) - ACCESSORIES

1

47507668

ARM

RH

1шт.

1

47507672

ARM

LH

1шт.

2

796762

DISC

Incl 4

1шт.

3

200734

HUB CAP

1шт.

4

132709

BEARING CUP,50.29mm OD x 10.67mm W

2шт.

5

132710

BEARING CONE,25.4mm ID x 14.73mm W

2шт.

6

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

1шт.

7

26301

WASHER

1шт.

8

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Slotted

1шт.

9

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.
