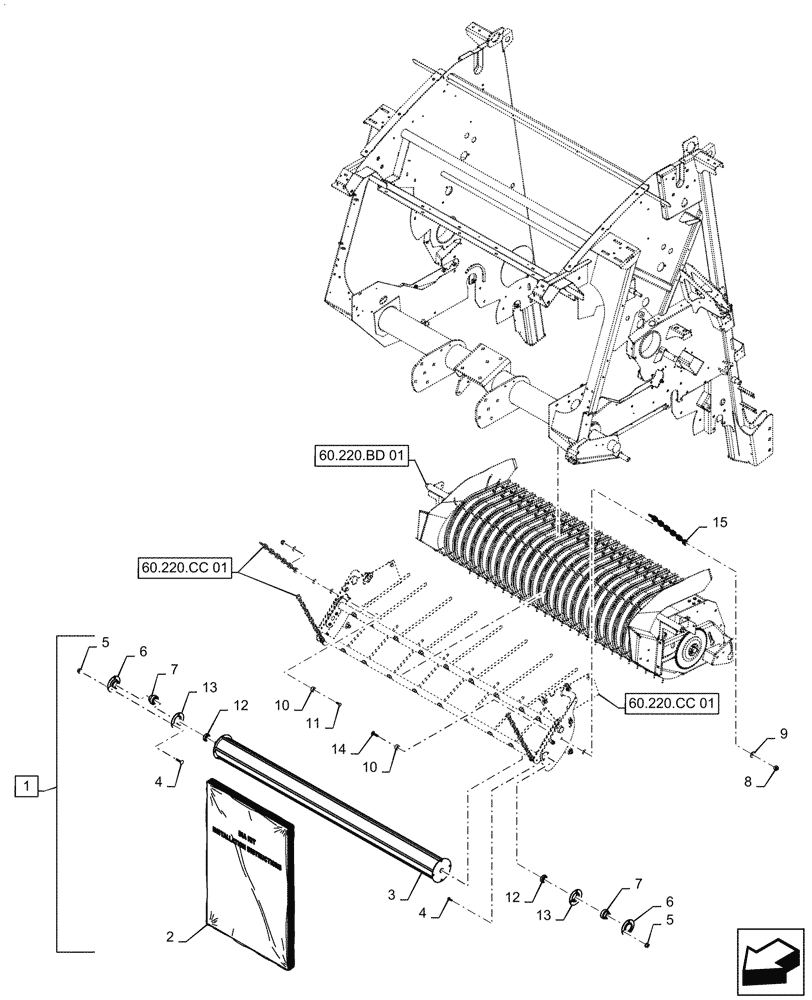

Запчасти Case IH RB565 (88.100.60[02]) - DIA KIT, ROLLER WINDGUARD, STANDARD PICK-UP (88) - ACCESSORIES

1

84491994

DIA KIT, HARVESTER

Roller Windguard, Incl 2 - 14

1шт.

2

84555289

INSTRUCTION

Installation

1шт.

3

84493182

ROLLER

1шт.

4

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

6

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

4шт.

7

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

10

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

11

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

12

47507709

SPACER,24.88mm ID x 41mm OD x 13mm Thk

2шт.

13

47505113

BEARING HOUSING

2шт.

14

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

15

47400899

CHAIN

2шт.

Shown for reference only. Included in Pickup Assembly. Not Included in Kit

1шт.
