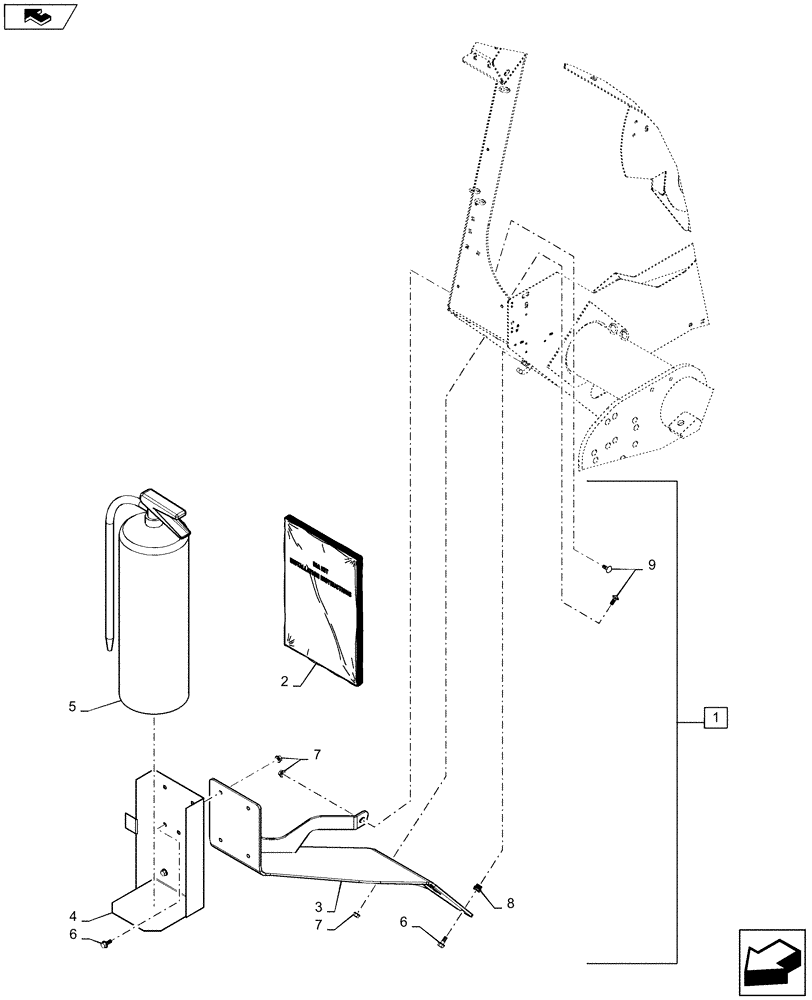

Запчасти Case IH RB565 (88.100.05[01]) - DIA KIT, FIRE EXTINGUISHER (88) - ACCESSORIES

1

84542883

DIA KIT, HARVESTER

Fire Extinguisher, Incl 2 - 7

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84394619

INSTRUCTION

1шт.

3

84542884

MOUNT

1шт.

4

84271991

MOUNT

1шт.

5

9827423

FIRE EXTINGUISHER,Classification A

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

8

86610200

THREADED INSERT,M8 x 1.25

1шт.

9

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.
