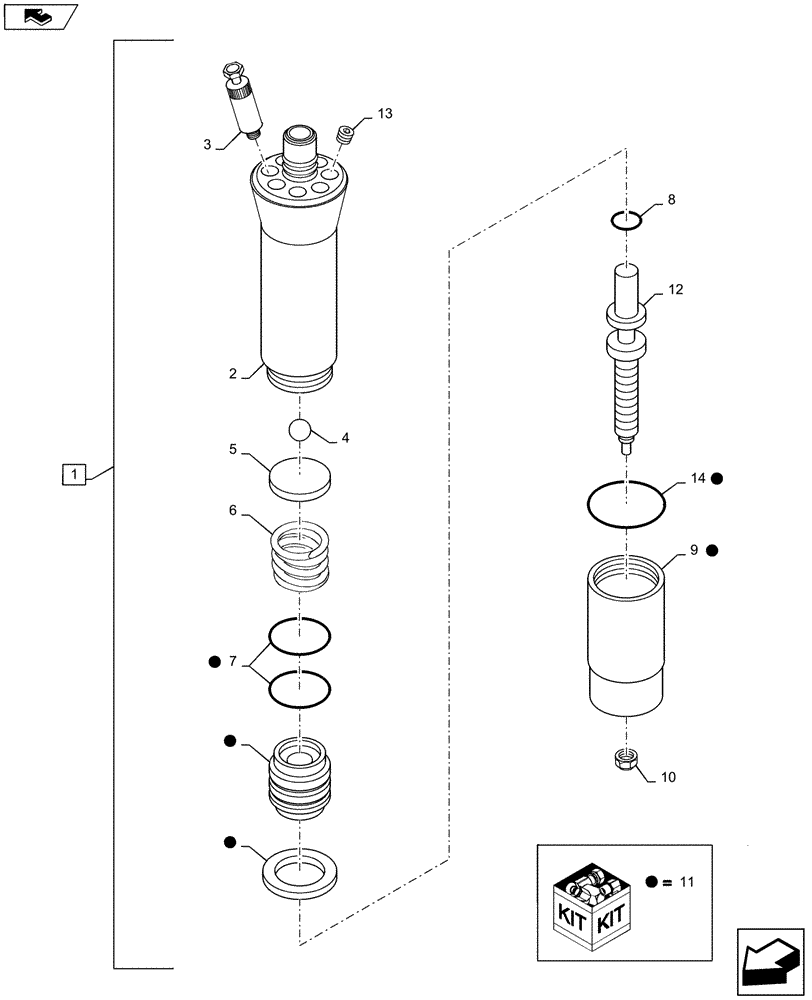

Запчасти Case IH RB565 (71.480.AL) - OILER PUMP (71) - LUBRICATION SYSTEM

1

87040807

PUMP

Chain Oiler, Incl 2 - 14

1шт.

2

9847026

HOUSING

Main

1шт.

3

87042326

HOLDER

Manifold

7шт.

4

86520978

BALL

7/8" Steel

1шт.

5

9847030

FILTER

Screen

1шт.

6

9847028

SPRING,Compression, 0.94" OD x 2.81" L

1шт.

7

9672929

O-RING,0.989" ID x 1.129" OD x 0.07"

2шт.

8

9672467

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

9

9847027

CAP

End Cap

1шт.

10

87309

JAM NUT,Jam, 1/2"-20, G2

1шт.

11

73342912

REPAIR KIT

Lube Pump

1шт.

12

NSS

NOT SOLD SEPARAT

Pipe, Hex Socket, 18:-27 NPT

1шт.

13

56513

PLUG,Hex Soc, 1/8" - 27 NPT

1шт.

Install In Any Unused Port

1шт.

14

NSS

NOT SOLD SEPARAT

Rubber Washer, Incl in 11

1шт.
