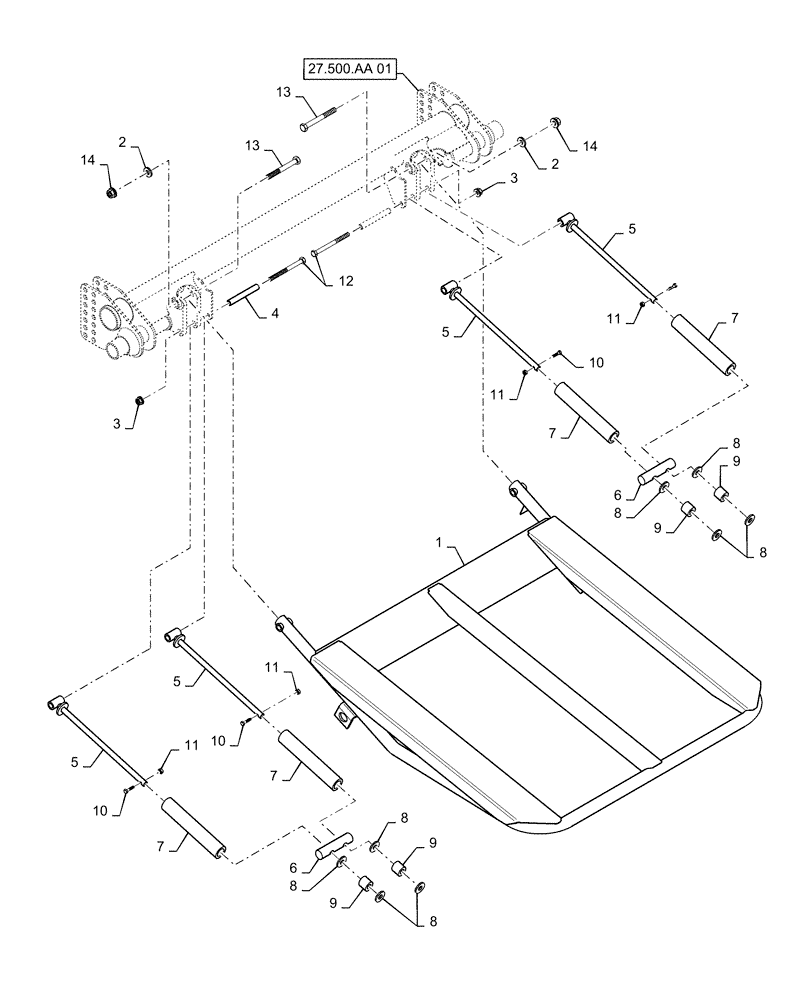

Запчасти Case IH RB565 (70.280.AB[01]) - VAR - 726809 - BALE EJECTOR, YFN188618 AND PRIOR (70) - EJECTION

1

84477467

EJECTOR

1шт.

2

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

2шт.

3

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

4

84499807

SPACER,13.1mm ID x 19.03mm OD x 157mm L

2шт.

5

87028071

ROD ASSY.

4шт.

6

84597678

PIN

2шт.

7

87029355

SPRING,Compression, 2.14" OD x 19.9" L

4шт.

8

87040148

WASHER,19.81mm ID x 47.497mm OD x 6.35mm Thk

8шт.

9

86562970

BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L

4шт.

10

86514369

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

4шт.

11

86629544

NUT,5/16” – 18, GR B

4шт.

12

86505996

BOLT,Hex, 1/2" - 13 x 7", Gr 5

2шт.

13

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

14

9626598

NUT,3/4"-10, GB

2шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.
