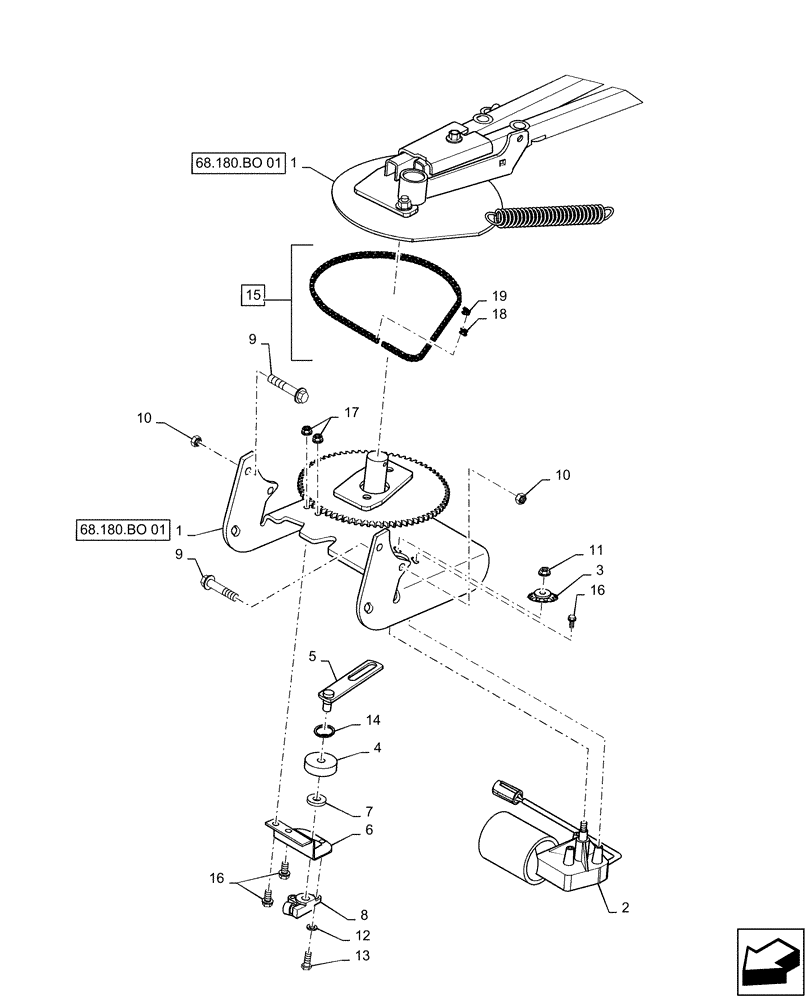

Запчасти Case IH RB565 (68.180.BO[04]) - TWINE ARM ELECTRIC (68) - TYING/WRAPPING

1

0C

ORDER COMPONENTS

Twine Arm Pivot

1шт.

2

47441445

WIPER MOTOR,12V

Twine Arm

1шт.

3

84258225

SPROCKET,RC35, 11T

11T, RC35

1шт.

4

84308004

HUB

1шт.

5

84279849

ACTUATING PLATE

1шт.

6

84300445

MOUNT

1шт.

7

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

1шт.

8

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

9

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

9672521

LOCK WASHER,Ext Tooth, #10

1шт.

13

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

14

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

15

84259286

CHAIN,35, 83 Links x 3/8" = 31-1/8" L

83 Pitches, RC35, Incl 18, 19

1шт.

16

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

5шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

18

86516818

CONNECTING LINK

RC35

1шт.

19

117226

OFFSET LINK

RC35

1шт.
