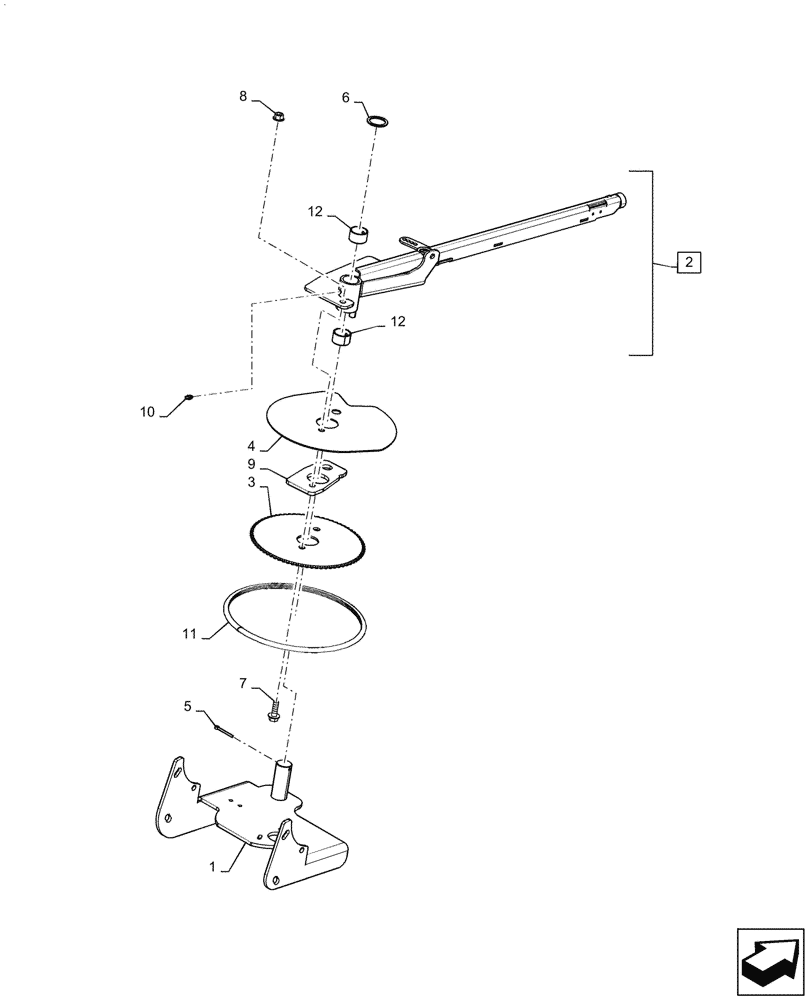

Запчасти Case IH RB565 (68.180.BO[03]) - TWINE ARM, P.I.N. YGN190999 AND AFTER (68) - TYING/WRAPPING

1

47900203

MOUNT

Twine Arm

1шт.

2

47930327

SUPPORT

Incl 12

1шт.

3

84247408

SPROCKET,RC 35, 72T

1шт.

4

84592195

PLATE

1шт.

5

300595

COTTER PIN,M4 x 40

2шт.

6

140109

WASHER,31mm ID x 40mm OD x 2mm Thk

4шт.

7

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

9

47537037

PLATE

2шт.

10

87414

LUBE NIPPLE,1/4" - 28

2шт.

11

291595

TUBE,19.05 mm OD, 530.35, 88.9 mm Length

RC35

1шт.

12

420434

BUSHING,30mm ID x 34mm OD x 20mm L

RC35

1шт.
