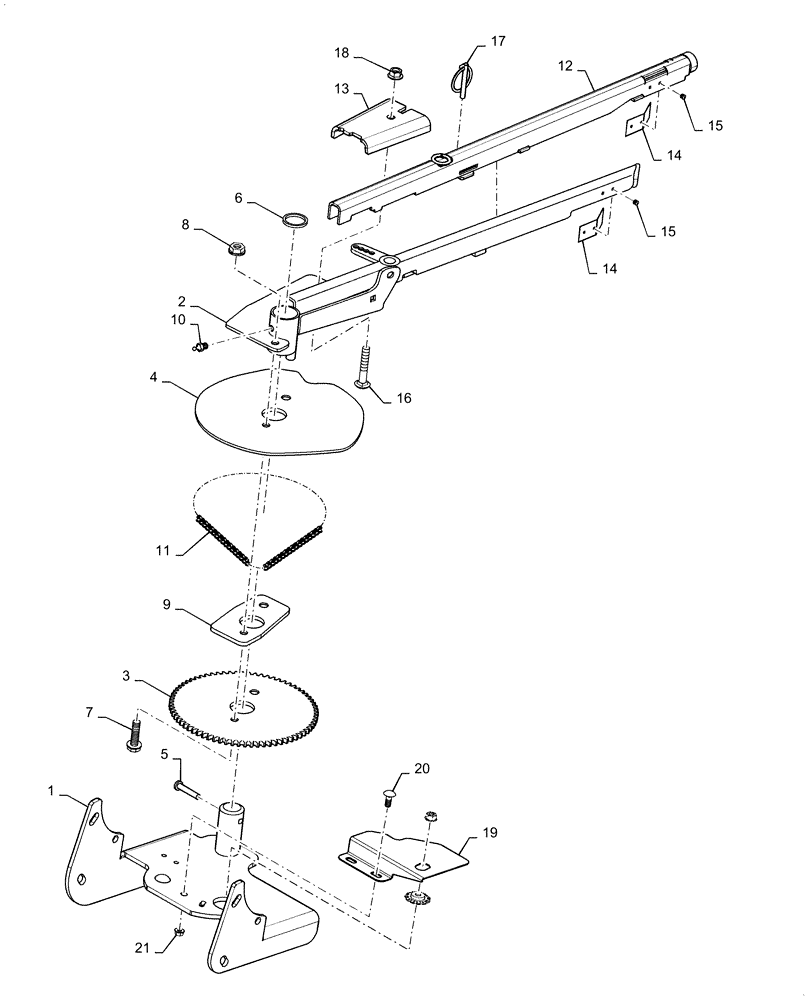

Запчасти Case IH RB565 (68.180.BO[02]) - TWINE PIVOT (68) - TYING/WRAPPING

1

84375042

MOUNT

Twine Arm, Serial Range: -YGN190280

1шт.

1

47900203

MOUNT

Twine Arm, Start Serial: YGN19028

1шт.

2

84410262

SUPPORT

1шт.

3

84247408

SPROCKET,RC 35, 72T

1шт.

4

84592195

PLATE

1шт.

5

300595

COTTER PIN,M4 x 40

1шт.

6

140109

WASHER,31mm ID x 40mm OD x 2mm Thk

1шт.

7

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

9

47537037

PLATE

1шт.

10

87414

LUBE NIPPLE,1/4" - 28

1шт.

11

84259286

CHAIN,35, 83 Links x 3/8" = 31-1/8" L

1шт.

12

47495564

ARM

Twine, Serial Range: -YGN190280

1шт.

12

47929708

ARM

Twine, Start Serial: YGN190281

1шт.

13

84283485

ANGLE

1шт.

14

47922005

LEAF SPRING

2шт.

15

86637656

RIVET,Pop, 1/8" x .337"

4шт.

16

84232472

SCREW,BTN HD, M10 x 1.5 x 35mm, Cl 12.9

1шт.

17

270184

LINCH PIN,6.35mm OD

1шт.

18

86619802

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

19

47942822

SHIELD

Trash

1шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.
