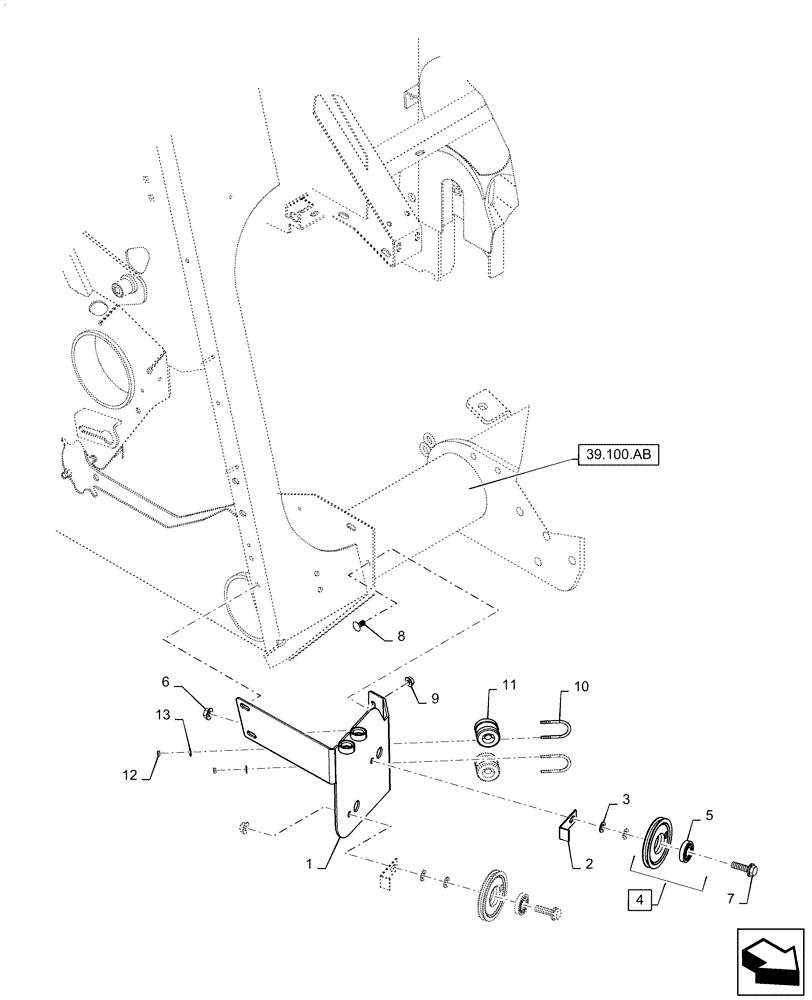

Запчасти Case IH RB565 (68.180.AK) - TWINE MOTION INDICATOR (68) - TYING/WRAPPING

1

47893954

SUPPORT

Twine Spinner

1шт.

2

86629062

GUIDE

2шт.

3

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

4

87038785

PULLEY ASSY.

Incl 5

2шт.

5

748669

BALL BEARING,10mm ID x 30mm OD x 9mm W

1шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

7

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

10

48097944

U-BOLT

2шт.

11

48113983

GUIDE

2шт.

12

87304

NUT,#10-24

4шт.

13

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.
