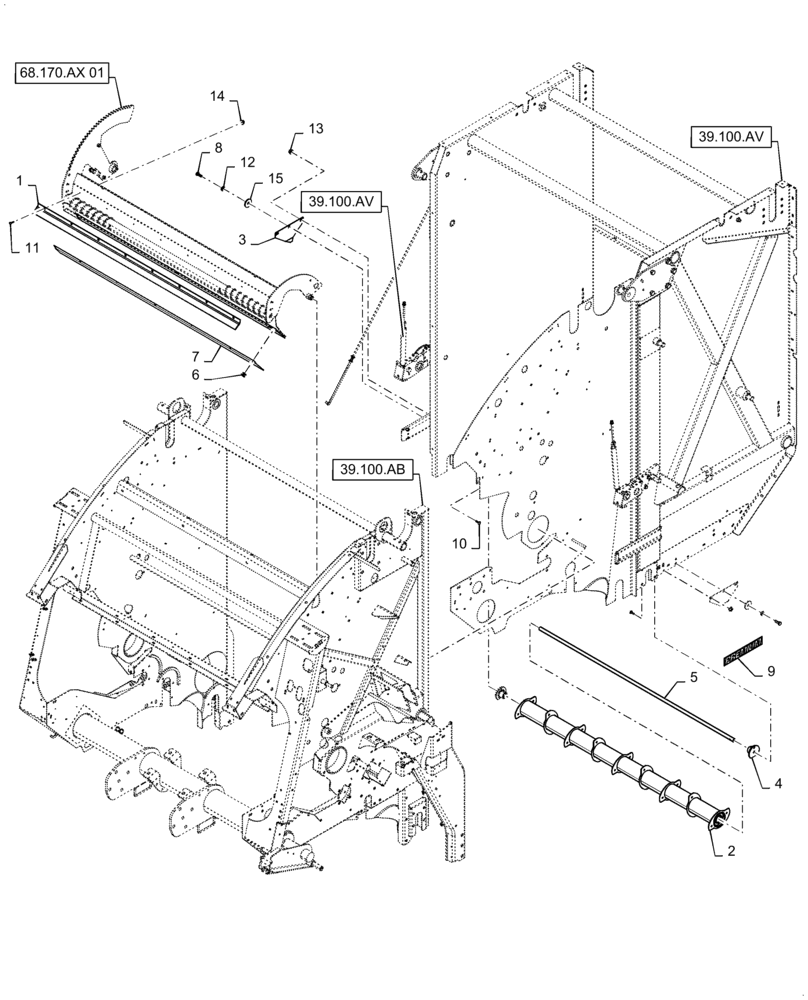

Запчасти Case IH RB565 (68.170.AX[02]) - NET WRAP, DUCKBILL, PREMIUM PACKAGE (68) - TYING/WRAPPING

1

47420563

BRUSH

Wrapper

1шт.

2

47510516

ROLL

Expeller

1шт.

3

47464796

SHIELD

2шт.

4

86521602

SUPPORT

2шт.

5

9608117

SHAFT

Expeller Roll

1шт.

6

86637656

RIVET,Pop, 1/8" x .337"

7шт.

7

47492758

PLATE

1шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

9

47452763

DECAL

Premium

2шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

8шт.

12

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

8шт.

15

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.
