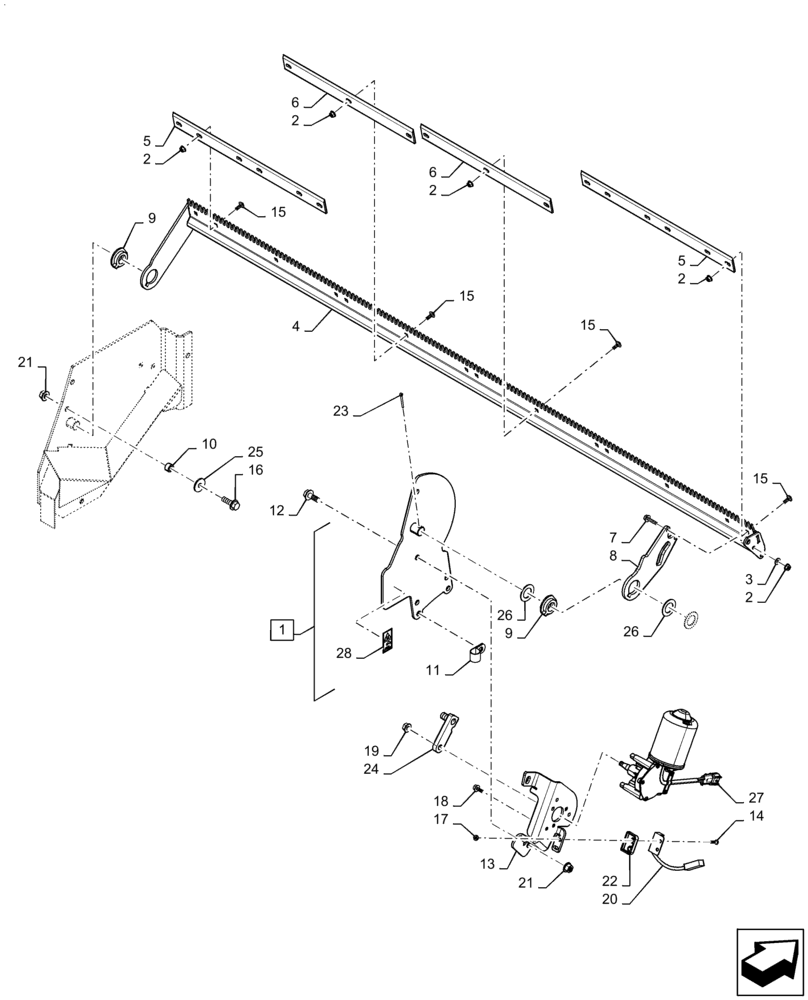

Запчасти Case IH RB565 (68.170.AP[01]) - NET KNIFE, YHN195126 AND PRIOR (68) - TYING/WRAPPING

1

47565530

PLATE

Incl 28

1шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

16шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

4

47363963

KNIFE HOLDER

, Serial Range: -YFN188618

1шт.

4

47782559

KNIFE HOLDER

, Start Serial: YFN188619

1шт.

5

86593724

KNIFE,445.8mm L x 38.1mm W x 3.4mm Thk

6 Slots

2шт.

6

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

3 Slots

2шт.

7

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

8

47840554

PLATE

1шт.

9

87521161

BUSHING,20.2mm ID x 44.5mm OD x 10.5mm Thk

2шт.

10

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

1шт.

11

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

13

47531156

SUPPORT

1шт.

14

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

15

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

14шт.

16

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

17

86900323

NUT,#10 - 24

2шт.

18

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

19

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

86594422

SENSOR

1шт.

21

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

22

86624468

SPACER,1.65" L x 5/16” Thk

Net Knife

1шт.

23

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

24

47836146

PIVOT

1шт.

25

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

1шт.

26

86624166

WASHER,0.91" ID x 1.5" OD x 0.06" Thk

3шт.

27

47441445

WIPER MOTOR,12V

1шт.

28

47377884

WARNING DECAL

Incl in 1

1шт.
