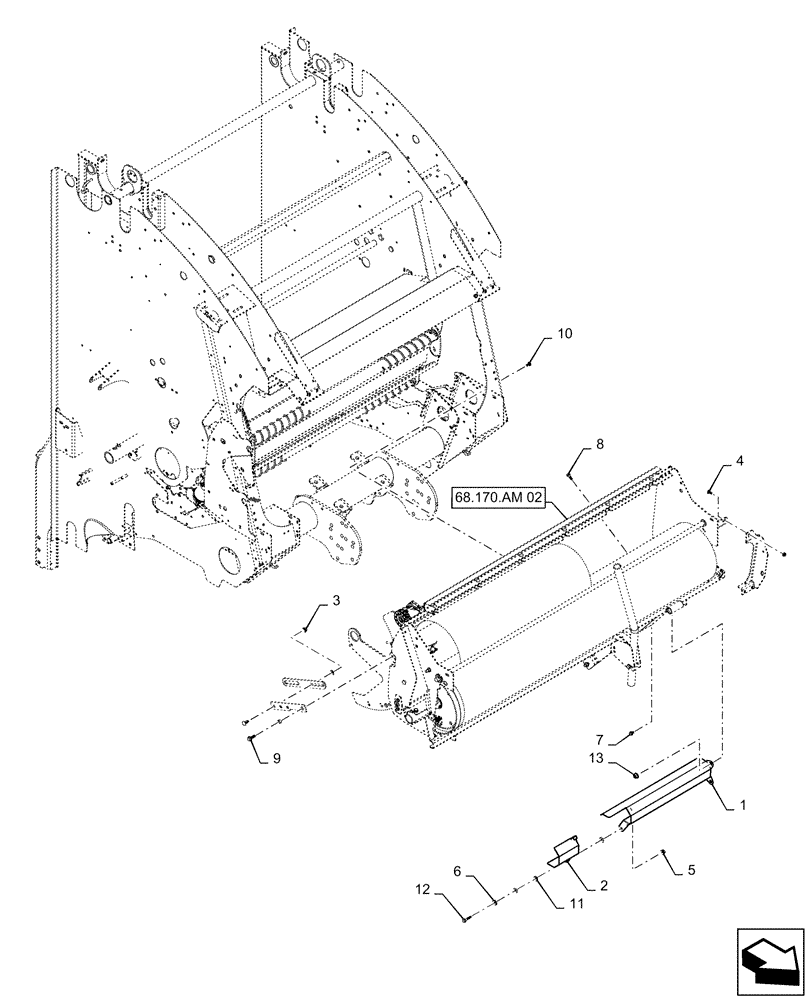

Запчасти Case IH RB565 (68.170.AM[03]) - NET WRAP STATIONARY ROLL BRAKE TENSIONER MOUNTING PARTS (68) - TYING/WRAPPING

1

47505349

SHIELD

Output Shaft, Long

1шт.

2

47493104

SHIELD

Output Shaft, Short

1шт.

3

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

4

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

7

381014

SCREW,Flng, M8 x 16mm

Thread Forming, M8 X 16

1шт.

8

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

9

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

10

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

13

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.
