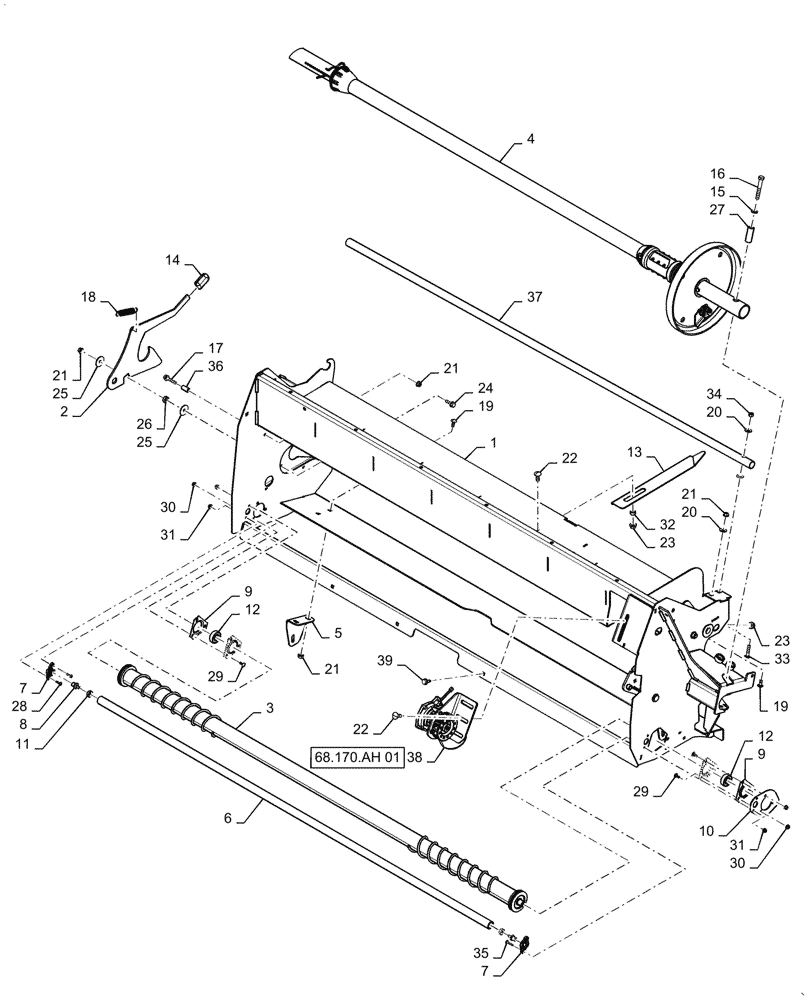

Запчасти Case IH RB565 (68.170.AM[02]) - VAR - 726666, 726964 - NET WRAP STATIONARY ROLL BRAKE TENSIONER, YFN188619 AND AFTER (68) - TYING/WRAPPING

1

47708453

SUPPORT

1шт.

2

47754342

LATCH

1шт.

3

47709290

ROLL

Spreader

1шт.

4

0C

ORDER COMPONENTS

Net Roll Tube

1шт.

5

47783704

MOUNT

1шт.

6

47709218

SHAFT,25.4mm OD x 1746.6mm L

Smooth

1шт.

7

47747997

BUSHING

2шт.

8

47709227

SUPPORT

2шт.

9

47751063

FLANGE

4шт.

10

47709248

PLATE

1шт.

11

47751055

BALL BEARING

2шт.

12

47751060

BALL BEARING

2шт.

13

47463692

SUPPORT

1шт.

14

86516827

HANDLE

1шт.

15

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

16

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

17

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

18

87109697

SPRING

1шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

20

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

21

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

22

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

23

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

24

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

25

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

2шт.

26

859896

SPACER

1шт.

27

47420685

SPACER

Net Tube

1шт.

28

60485

SCREW,Slotted Truss Hd, #10-24 x 3/4"

2шт.

29

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

3шт.

30

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

31

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

4шт.

32

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

33

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

1шт.

34

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

35

84464

SCREW,Slotted Truss Hd, #10 - 24 x 1"

2шт.

36

27695

BUSHING,9.53mm ID x 12.83mm OD x 25.4mm L

1шт.

37

47465287

SHAFT,25mm OD x 1798mm L

1шт.

38

0C

ORDER COMPONENTS

Duckbill Drive

1шт.

39

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

4шт.
