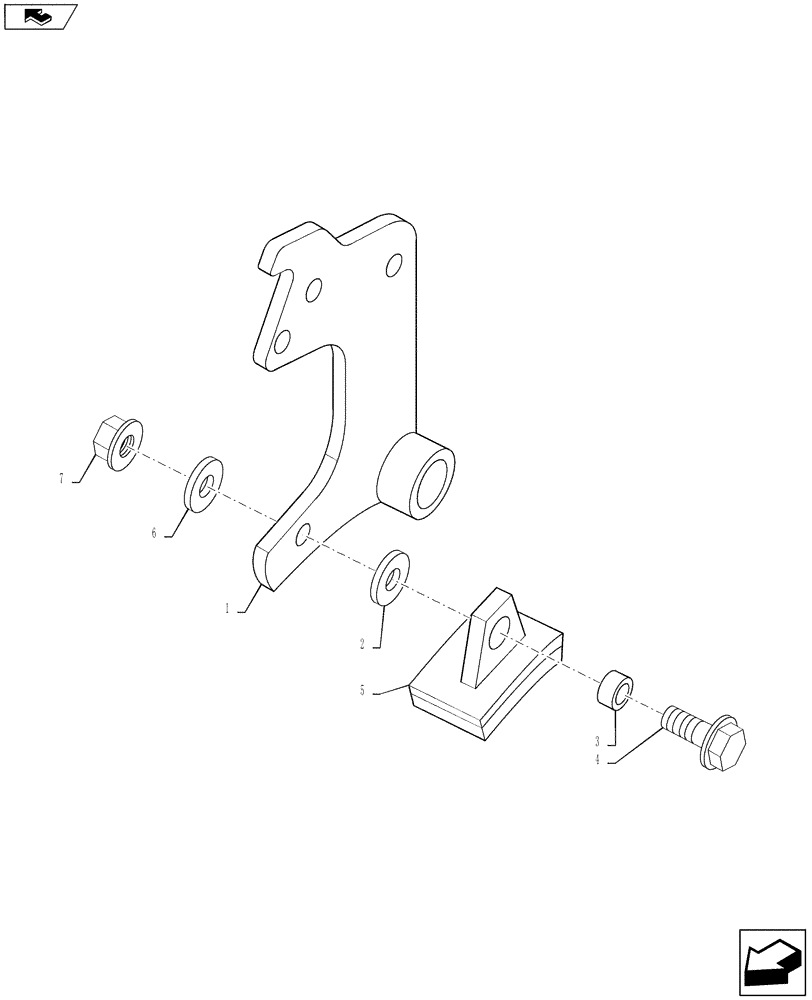

Запчасти Case IH RB565 (68.170.AA[06]) - NET WRAP BRAKE (68) - TYING/WRAPPING

1

84573220

SUPPORT

1шт.

2

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

1шт.

3

84024749

SPACER,10.5mm ID x 16mm OD x 8.5mm L

1шт.

4

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

5

86641342

BRAKE PAD,17.37mm Thk

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.
