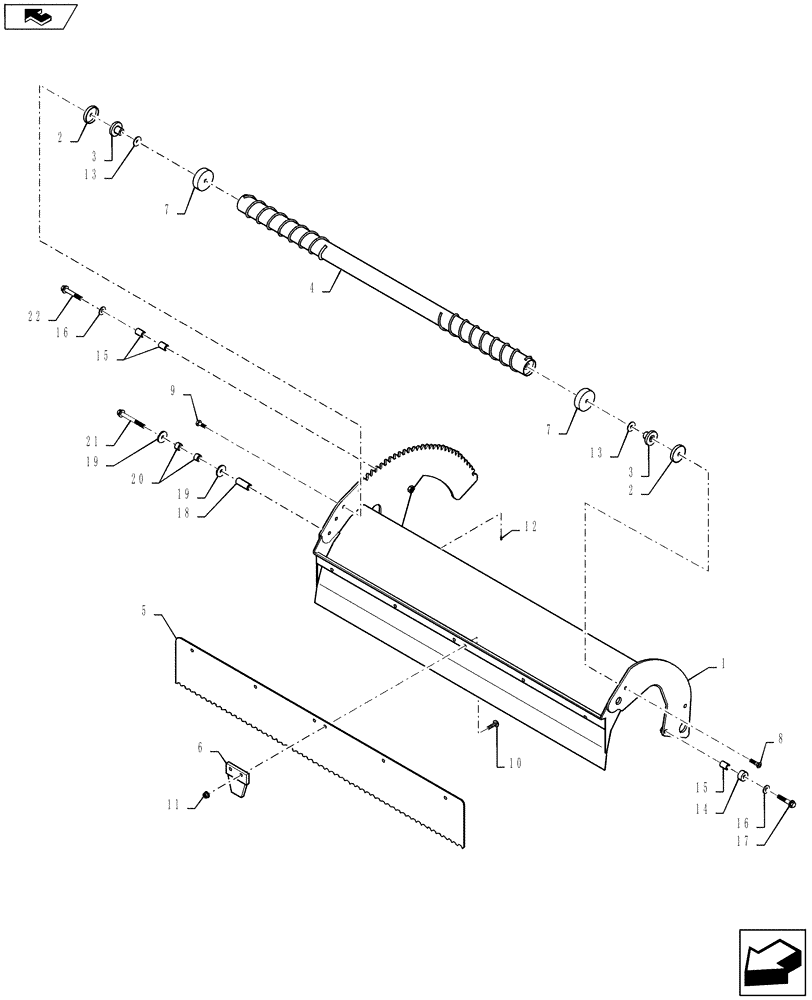

Запчасти Case IH RB565 (68.170.AA[02]) - NET WRAP DUCKBILL (68) - TYING/WRAPPING

1

47516513

FRAME

Duckbill

1шт.

2

86622552

SHIELD

4шт.

3

86517336

SUPPORT

4шт.

4

87397765

ROLL

2шт.

5

84596772

BAFFLE

Spreader

1шт.

6

84600537

PLATE

3шт.

7

27391

BUSHING

2шт.

8

280760

HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

12

87414

LUBE NIPPLE,1/4" - 28

1шт.

13

794034

WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk

2шт.

14

65957

BUSHING,18.23mm ID x 28.61mm OD x 15.75mm W

1шт.

15

255189

SPACER

3шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

17

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

1шт.

18

84588555

BUSHING,10.3mm ID x 15.85mm OD x 68mm L

1шт.

19

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

2шт.

21

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

22

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

1шт.
