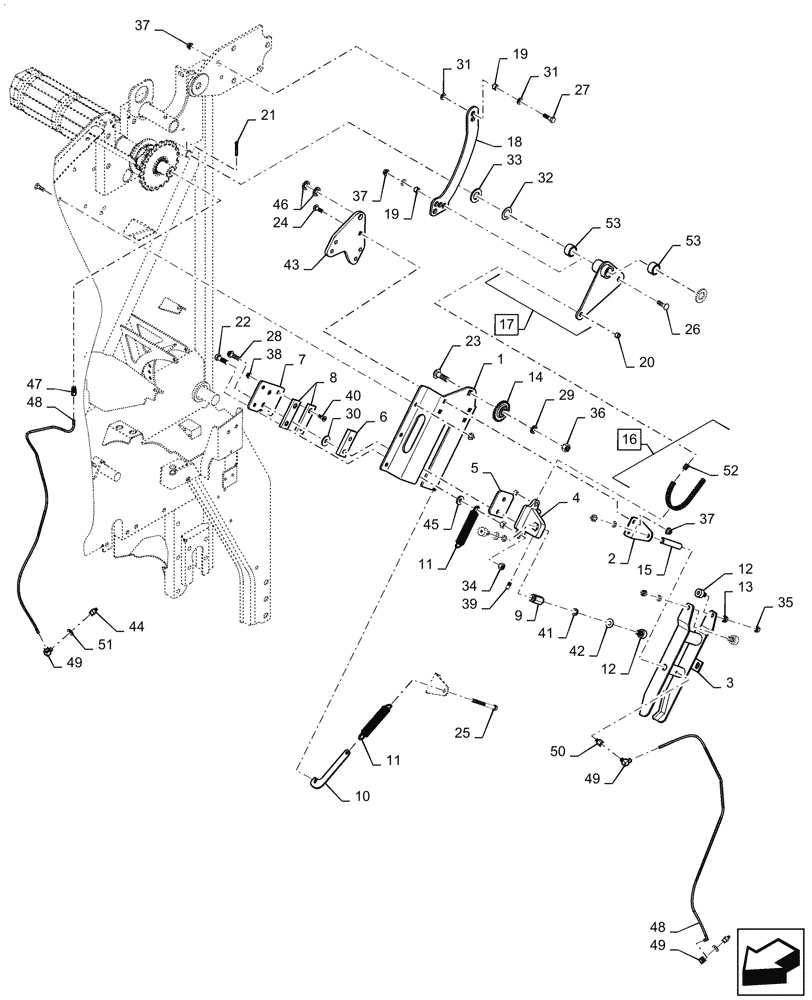

Запчасти Case IH RB565 (62.141.AA) - DRIVE ROLL CLUTCH (62) - PRESSING - BALE FORMATION

1

84134471

CHANNEL

1шт.

2

47662020

ANGLE

, Serial Range: -YFN188618

2шт.

2

47819695

ANGLE

, Start Serial: YFN188619

2шт.

3

47572067

ARM

, Serial Range: -YFN188618

1шт.

3

48081480

, Start Serial: YFN188619

ARM

1шт.

4

84134469

BLOCK

, Serial Range: -YFN188618

1шт.

4

47781564

BLOCK

, Start Serial: YFN188619

1шт.

5

84545260

SLIDE

1шт.

6

84590444

PLATE

1шт.

7

84158034

PLATE

, Serial Range: -YFN188618

1шт.

7

47819696

PLATE

, Start Serial: YFN188619

1шт.

8

84158032

SLIDE

2шт.

9

47630705

SHAFT

1шт.

10

47481777

HOOK

1шт.

11

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

2шт.

12

84146982

BEARING, ROLLER, CYL

Bearing

4шт.

13

9808171

SPACER,12mm ID x 19mm OD x 7mm Thk

2шт.

14

103243

DRIVEN SPROCKET

18T

1шт.

15

47596314

SPACER

1шт.

16

9617629

CHAIN,41 Links x 12.7mm Pitch = 520.7mm L

Single Pitch, Non Hardened Pins, Serial Range: -YFN188618

1шт.

16

47799278

CHAIN,41 Links x 12.7mm Pitch = 520.7mm L

Single Pitch,Hardened Pins, Incl 52, Start Serial: YFN188619

1шт.

17

86624729

ARM

Incl 53

1шт.

18

87715757

LEVER

1шт.

19

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

2шт.

20

86636763

HUB

2шт.

21

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

22

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

23

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

24

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

10шт.

25

331168

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

26

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

, Serial Range: -YFN188618

1шт.

26

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

, Start Serial: YFN188619

1шт.

27

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

, Serial Range: -YFN188618

1шт.

27

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

, Start Serial: YFN188619

1шт.

28

9804263

BOLT,M10 x 49.2mm, Cl 8.8

, Serial Range: -YFN188618

2шт.

28

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

, Start Serial: YFN188619

2шт.

29

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

30

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

2шт.

31

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

32

134463

WASHER,.030" Thk

1шт.

33

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

34

9706685

NUT,M12 x 1.75, Cl 8

2шт.

35

280474

NUT,7/16"-20, GC

2шт.

36

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

37

9804278

FLANGE NUT,M10 x 1.5, Cl 8

13шт.

38

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

39

300483

SET SCREW,M10 x 25mm

, Serial Range: -YFN188618

1шт.

39

81763

SET SCREW,Hex Soc, 3/8"-16 x 1"

, Start Serial: YFN188619

1шт.

40

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

, Serial Range: -YFN188618

4шт.

41

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

, Start Serial: YFN188619

2шт.

41

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

2шт.

42

81547

LOCK WASHER,7/16"

2шт.

43

47532701

STIFFENER

1шт.

43

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

44

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

1шт.

45

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

46

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

3шт.

47

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

48

87014413

TUBE,4.80 mm OD x 1850 mm L

1шт.

Cut to Length

1шт.

49

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

3шт.

50

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

1шт.

51

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

52

47799321

LINK,RC 2040, 25.4 Pitch

2шт.

53

9822495

BUSHING,25.5mm ID x 31.82mm OD x 19.5mm L

2шт.
