(62.140.AR[02]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER

Запчасти Case IH RB565 (62.140.AR[02]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

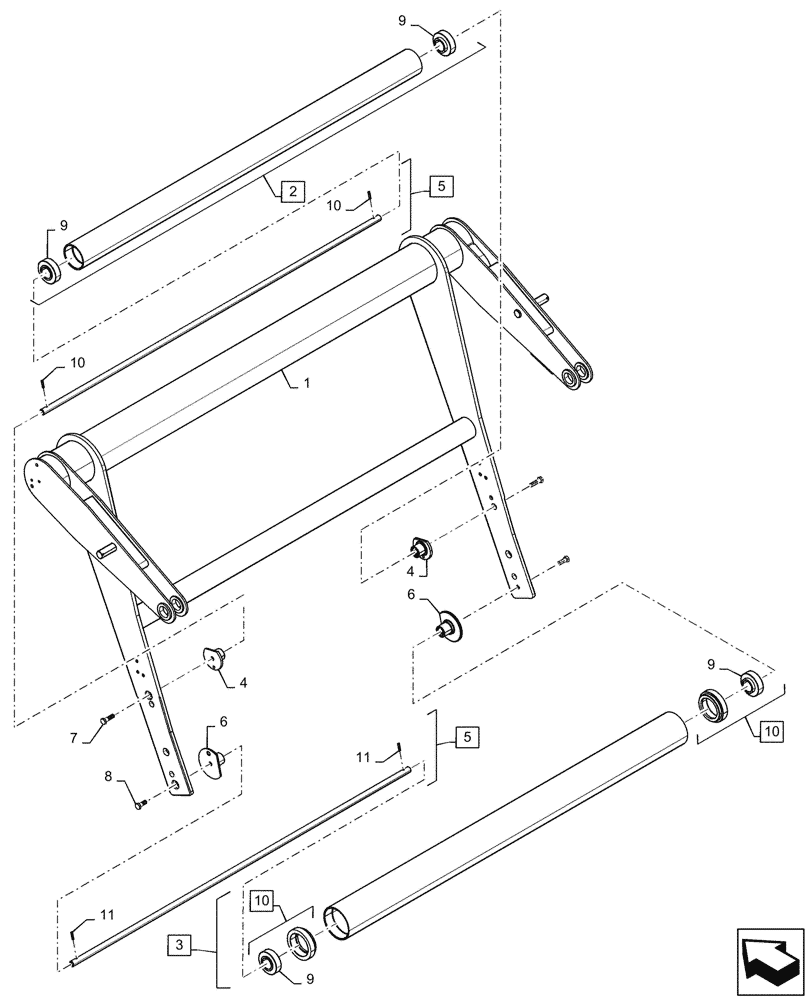

Схема запчастей Case IH RB565 - (62.140.AR[02]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION
7
10
10
10
8
4
3
9
11
6
5
9
10
6
5
4
2
9
9
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47404494

ARM

Take Up

1шт.

2

84600584

ROLL

Incl 9

1шт.

3

84601409

ROLL

Incl 10

1шт.

4

86516321

SUPPORT

2шт.

5

9608250

SHAFT

Incl 11

1шт.

6

86516322

SUPPORT

2шт.

7

47945176

BOLT

2шт.

8

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.

9

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

10

47935418

BEARING HOUSING

Incl 9

2шт.

11

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
