Запчасти Case IH RB565 (62.140.AQ[02]) - VAR - 726813 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, DUAL HYD. CYLINDERS, MANUAL CONTROL, YFN188619 AND AFTER (62) - PRESSING - BALE FORMATION

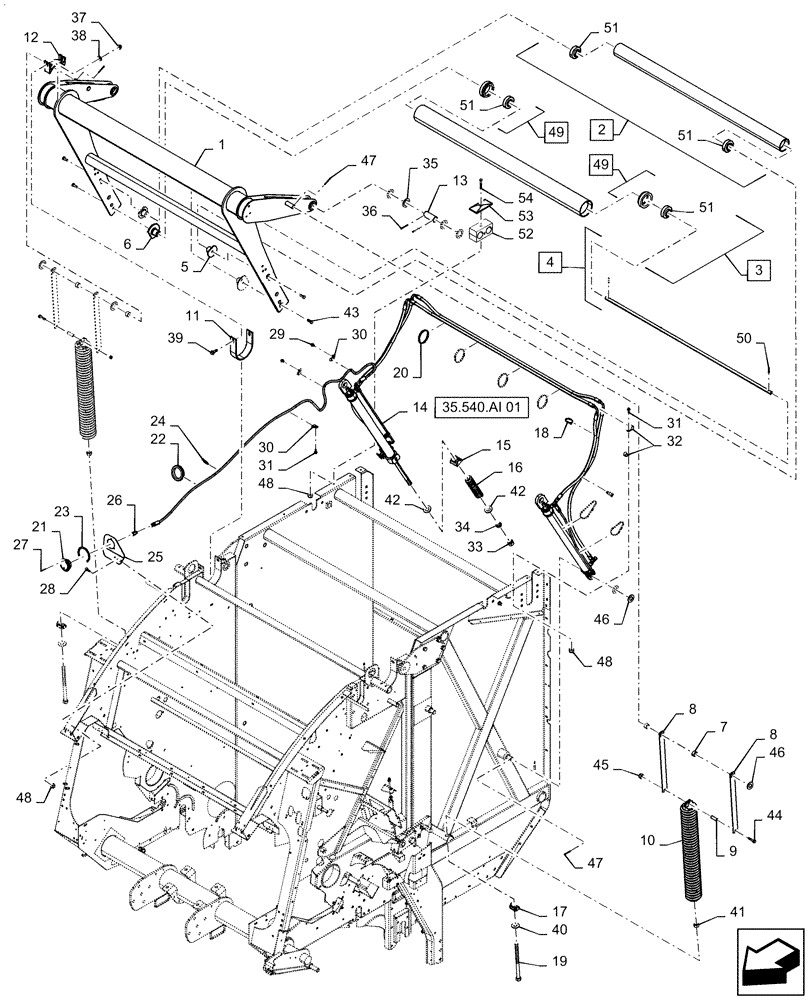

Схема запчастей Case IH RB565 - (62.140.AQ[02]) - VAR - 726813 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, DUAL HYD. CYLINDERS, MANUAL CONTROL, YFN188619 AND AFTER (62) - PRESSING - BALE FORMATION
35.540.ai 01
21
20
51
19
31
46
10
8
16
51
47
14
39
3
22
2
44
50
31
30
47
49
48
24
53
37
32
49
45
27
51
38
52
18
12
46
35
26
33
29
7
17
25
48
9
54
28
13
48
43
23
51
34
11
1
40
36
42
8
4
41
42
15
30
6
5

Артикул

Название

Примечание

Количество

1

47404491

ARM

Take Up

1шт.

2

84600584

ROLL

Front Serpentine, Incl 51

1шт.

3

84601409

ROLL

Rear Serpentine, Incl 49

1шт.

4

9608250

SHAFT

Incl 50

2шт.

5

87023400

SUPPORT

2шт.

6

87654792

SUPPORT

2шт.

7

87655372

SPACER,25.9mm ID x 31.5mm OD x 16.8mm Thk

2шт.

8

86637229

LINK,489mm L

4шт.

9

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

2шт.

10

87654704

SPRING

2шт.

11

9617265

BAND

2шт.

12

86636552

BEARING CAP

2шт.

13

86637228

PIN,38.1mm OD x 91.5mm L

2шт.

14

0C

ORDER COMPONENTS

HYDRAULIC BALE TENSION, DUAL CYLINDERS, MANUAL CONTROL - VAR 726813

1шт.

15

87654703

PIVOT

1шт.

16

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

17

84407658

PIVOT

2шт.

18

86566989

CABLE TIE,208mm L

4шт.

19

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

20

87034173

CABLE TIE,774.7mm L

7шт.

21

84384411

PRESSURE GAUGE,3000 PSI, 1/4" NPT

3000 PSI

1шт.

22

529828

GROMMET,2 1/8" x 2 7/8" x 2 1/2"

1шт.

23

84603722

DECAL

Density Pressure

1шт.

24

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

25

84399830

SUPPORT

1шт.

26

241971

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe

1шт.

27

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

3шт.

28

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

29

381014

SCREW,Flng, M8 x 16mm

2шт.

30

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

31

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

32

207705

CLAMP,15.8mm ID

4шт.

33

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

34

9849647

NUT,7/8"-9, G5

1шт.

35

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

8шт.

36

87400

COTTER PIN,3/16" x 2"

4шт.

37

86619803

FLANGE NUT

4шт.

38

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

39

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

40

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

41

280954

NUT,3/4"-10, G5

2шт.

42

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

43

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

44

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

45

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

46

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

47

87399

COTTER PIN,1/2 x 3 Bolt

3шт.

48

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

49

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl. 51

2шт.

50

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

51

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

52

1589857

CLAMP

2шт.

53

87000230

PLATE

2шт.

54

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

Выбрано товаров: 54
