Запчасти Case IH RB565 (62.140.AQ[02]) - VAR - 726813 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, DUAL HYD. CYLINDERS, MANUAL CONTROL, YFN188618 AND PRIOR (62) - PRESSING - BALE FORMATION

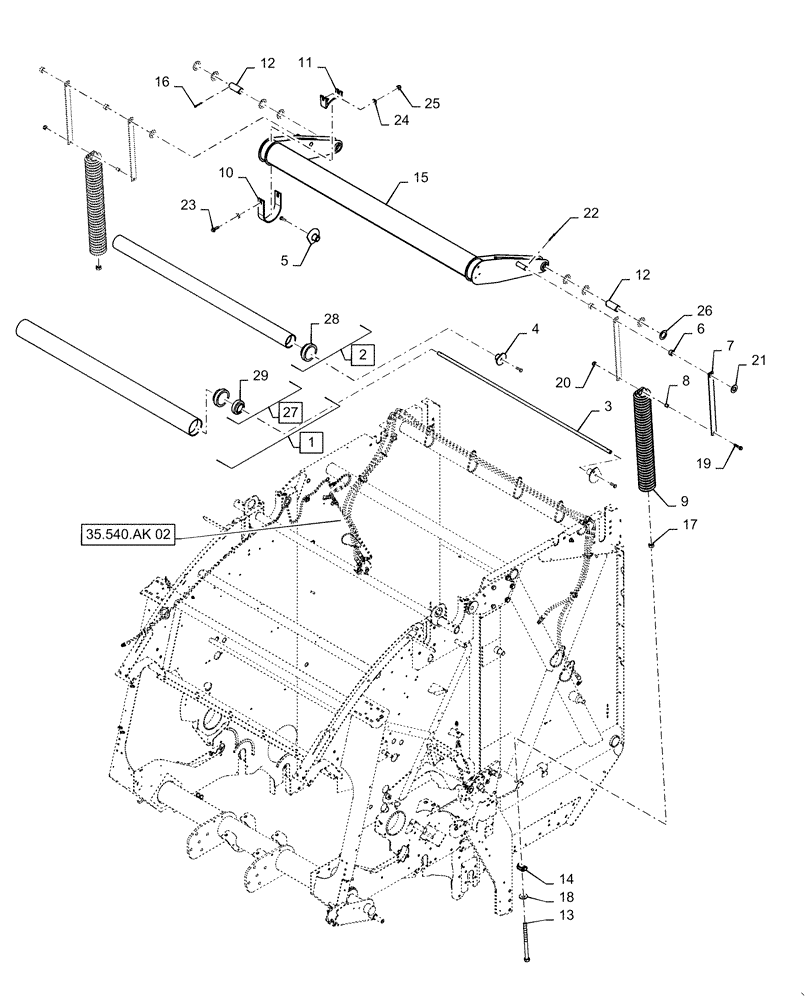

Схема запчастей Case IH RB565 - (62.140.AQ[02]) - VAR - 726813 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, DUAL HYD. CYLINDERS, MANUAL CONTROL, YFN188618 AND PRIOR (62) - PRESSING - BALE FORMATION
2
9
19
26
18
23
13
10
27
22
12
15
24
25
4
1
28
17
7
16
35.540.ak 02
12
20
11
14
29
8
3
6
5
21

Артикул

Название

Примечание

Количество

1

84601409

ROLL

Front, Incl 27

1шт.

2

9842174

ROLLER

Rear, Incl 28

1шт.

3

9608250

SHAFT

1шт.

4

86516321

SUPPORT

2шт.

5

86516322

SUPPORT

2шт.

6

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

M31.5 x 25.9 ID

4шт.

7

86517077

CONNECTING LINK

4шт.

8

768624

SPACER

M15.8 OD x 10.5 ID

2шт.

9

87654704

SPRING

2шт.

10

9617265

BAND

2шт.

11

9617266

BEARING CAP,145.6 mm OD

2шт.

12

86515940

PIN,38.1mm OD x 91.5mm L

M38.1 OD x 91.5 Long

2шт.

13

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

3/4"-10 x 11-1/2" Long

2шт.

14

625098

PIVOT

2шт.

15

47404491

ARM

Takeup

1шт.

16

87400

COTTER PIN,3/16" x 2"

4шт.

17

280954

NUT,3/4"-10, G5

2шт.

18

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

19

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

21

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

22

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

23

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

24

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

25

100038

NUT,M12 x 1.75, Cl 8

4шт.

26

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

M60.3 OD x 38.9 ID

8шт.

27

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 29

2шт.

28

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

29

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

M38.1 Bore x 80 OD

2шт.

Выбрано товаров: 29
