Запчасти Case IH RB565 (62.140.AJ[03]) - LH DRIVE - CHAIN (62) - PRESSING - BALE FORMATION

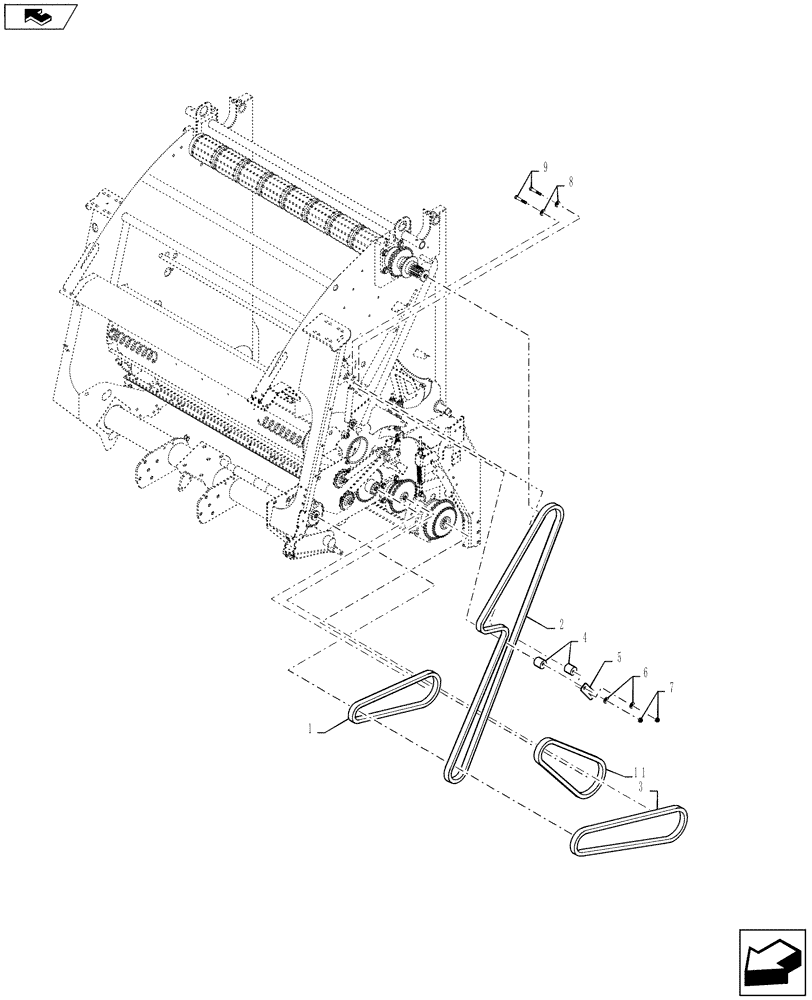

Схема запчастей Case IH RB565 - (62.140.AJ[03]) - LH DRIVE - CHAIN (62) - PRESSING - BALE FORMATION
9
6
11
3
5
2
1
7
home
4
8

Артикул

Название

Примечание

Количество

1

86549269

CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm

Incl 10

2шт.

2

47531223

CHAIN,RC80HFP, 158 Links x 25.4mm = 4013.2mm L

Incl 14

1шт.

3

9804061

CHAIN,80, 84 Links x 25.4mm = 2133.6mm

Incl 10

1шт.

4

84271552

IDLER,50.8mm OD x 56mm L

2шт.

5

84266904

PLATE

1шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

9

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

2шт.

10

84356440

LINK,25.4mm Pitch

Incl in 1, 3

2шт.

Not Illustrated

1шт.

11

84597734

CHAIN,60H-2, 69 Links x 19.05mm = 1314.45mm L

Incl 12, 13

1шт.

Overshot Rotor Pickup

1шт.

12

84605997

LINK,RC60H-2, 19.1mm Pitch

Master

1шт.

Not Illustrated

1шт.

13

NSS

NOT SOLD SEPARAT

Offset Link, Incl in 11

1шт.

Not Illustrated

1шт.

14

47531224

CHAIN

Master Link, Incl in 2

1шт.

Not Illustrated

1шт.

Выбрано товаров: 19
