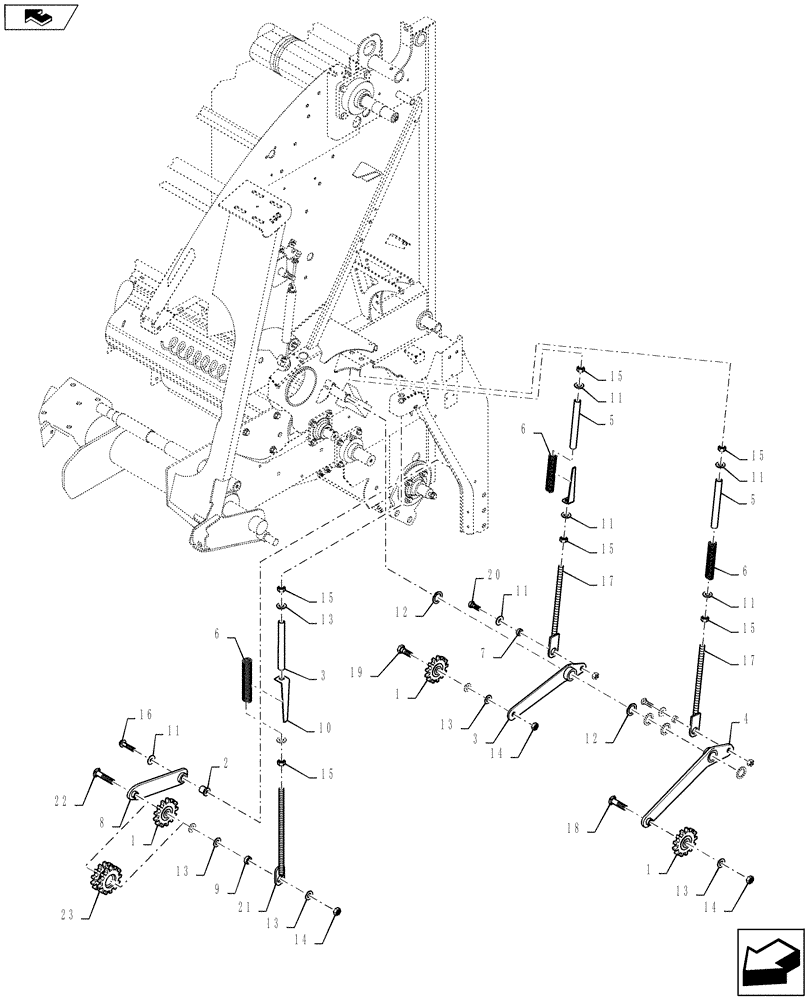

Запчасти Case IH RB565 (62.140.AJ[02]) - LH DRIVE - IDLER (62) - PRESSING - BALE FORMATION

1

66614

SPROCKET,RC80, 13T

13T, RC80

3шт.

Standard Pickup|12|Standard Pickup

1шт.

1

66614

SPROCKET,RC80, 13T

13T, RC80

2шт.

Overshot Rotor Pickup

1шт.

2

84376806

SPACER,13mm ID x 31.75mm OD x 32.5mm L

1шт.

3

84582052

ARM

Idler

1шт.

4

84582051

ARM

Idler

1шт.

5

86543175

TUBE,19.05 mm OD x 228.60 mm L

3шт.

6

64861

SPRING

3шт.

7

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

2шт.

8

84582099

ARM

Idler

1шт.

9

86529376

SPACER

1шт.

10

86643093

INDICATOR

2шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

12

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

5шт.

13

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

6шт.

14

86000441

NUT,M16 x 2.0, Cl 8

5шт.

15

9706685

NUT,M12 x 1.75, Cl 8

6шт.

16

9804270

BOLT,Hex, M12 x 60mm, Cl 8.8

1шт.

17

86633971

BOLT,M12 x 1.75 x 377.5mm L

2шт.

18

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

1шт.

19

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

20

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

21

47388340

TENSIONER

1шт.

22

120049

CARRIAGE BOLT,Short Nk, M16 x 90mm, Cl 8.8

1шт.

23

47395966

SPROCKET,RC60, 13T

Double, 13T, RC60

1шт.

Overshot Rotor Pickup

1шт.
