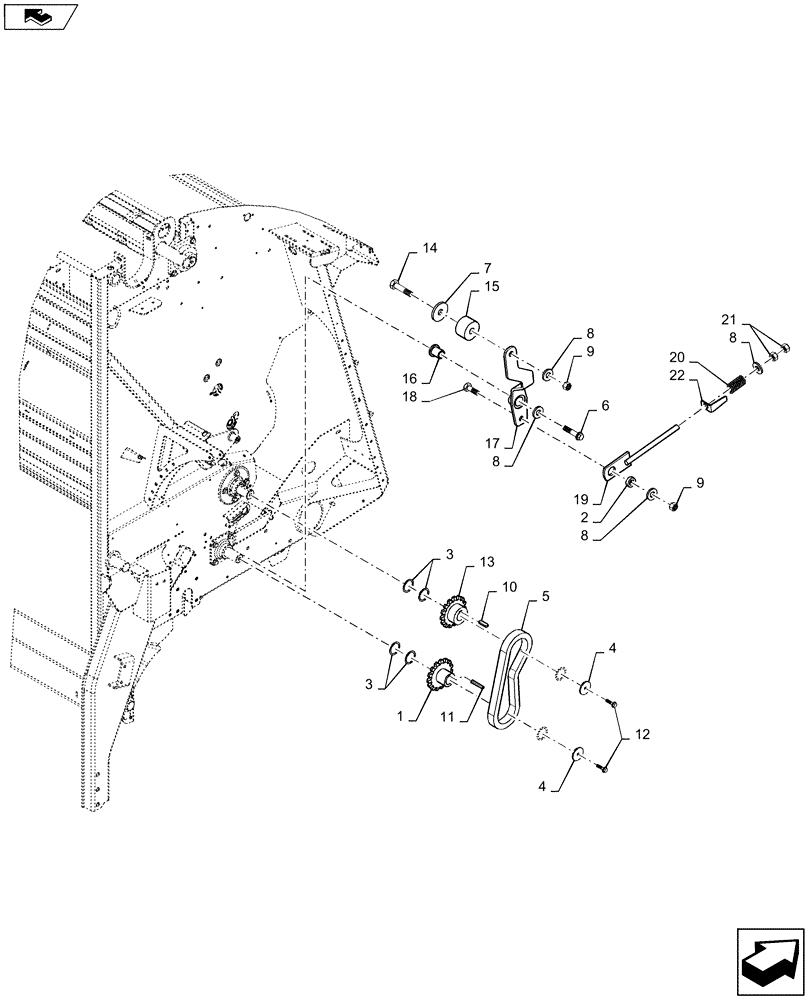

Запчасти Case IH RB565 (62.140.AI) - DRIVE, RH (62) - PRESSING - BALE FORMATION

1

84349215

SPROCKET,15T, RC80

15T, RC80, Fixed Roll

1шт.

2

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

1шт.

3

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

6шт.

4

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

2шт.

5

87627269

CHAIN (AG),80, 38 Links x 25.4mm = 965.2mm

Incl 23

1шт.

6

9804270

BOLT,Hex, M12 x 60mm, Cl 8.8

1шт.

7

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

1шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

9

100038

NUT,M12 x 1.75, Cl 8

2шт.

10

170055

KEY

1шт.

11

87495

KEY,0.31" x 2.50" L

1шт.

12

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

13

84533097

SPROCKET,15T, RC80

15T, RC80, Pivot Roll

1шт.

14

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

15

47493781

IDLER

1шт.

16

84376806

SPACER,13mm ID x 31.75mm OD x 32.5mm L

1шт.

17

47587896

ARM

1шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

19

47494243

TENSIONER

1шт.

20

86635754

SPRING,Compression, 1.029" OD x 2.73" L

1шт.

21

9706685

NUT,M12 x 1.75, Cl 8

2шт.

22

47493774

INDICATOR

1шт.

23

86643889

CONNECTING LINK

1шт.

Not Illustrated

1шт.
