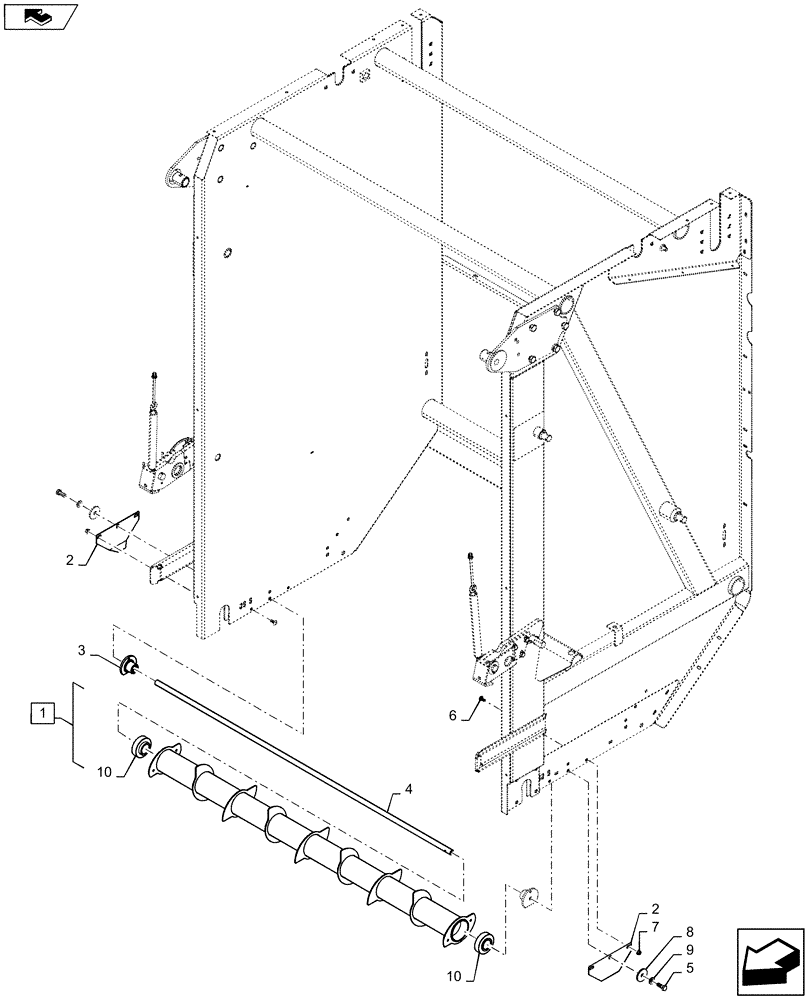

Запчасти Case IH RB565 (62.140.AC[05]) - EXPELLER ROLL, PREMIUM MODELS (62) - PRESSING - BALE FORMATION

1

47510516

ROLL

Expeller, Incl 10

1шт.

2

47464796

SHIELD

2шт.

3

86521602

SUPPORT

2шт.

4

9608117

SHAFT

1шт.

5

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

8

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

9

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

10

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.
