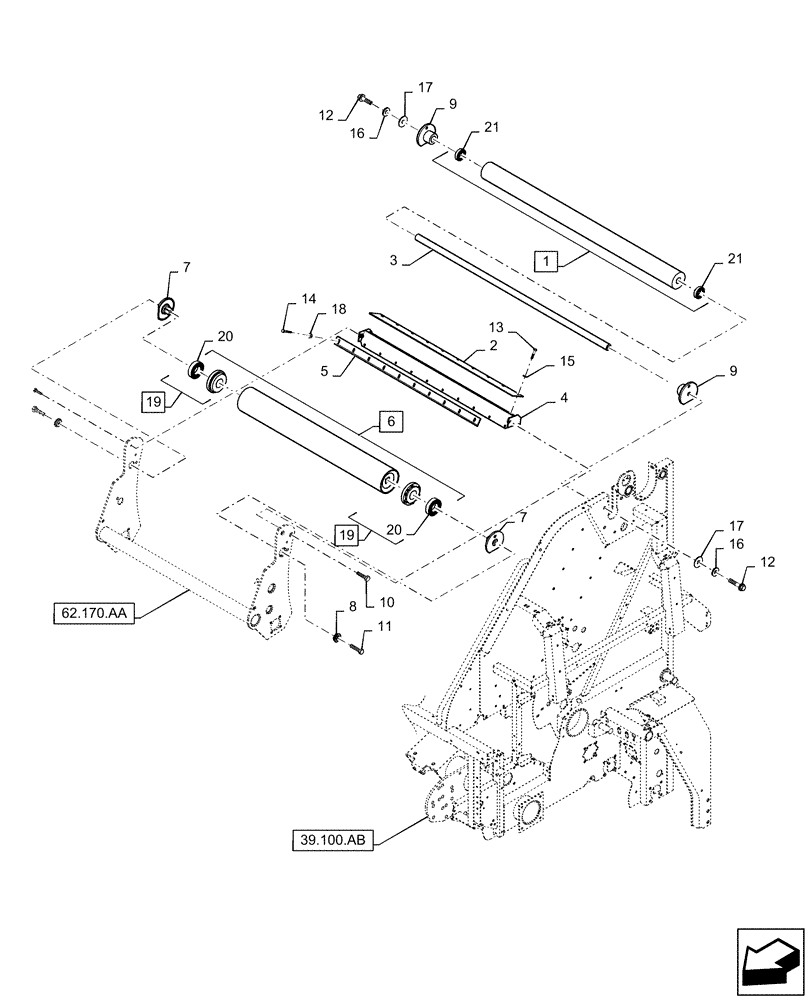

Запчасти Case IH RB565 (62.140.AC[04]) - FOLLOWER ROLL, BACKWRAP ROLLER & SCRAPER (62) - PRESSING - BALE FORMATION

1

84600588

ROLL

Backwrap, Steel, Incl 21

1шт.

1

86536001

ROLLER

Backwrap, Rubber, Incl 21

1шт.

Optional Roller used in Conditions Where Belt Slippage Occurs.

1шт.

2

87534991

STRIP

1шт.

3

9608117

SHAFT

1шт.

4

87048815

ANGLE

1шт.

5

86636769

SCRAPER BLADE

1шт.

6

86557580

ROLLER

Follower, Incl 19

1шт.

7

86553395

SUPPORT

2шт.

8

87398962

HUB,12.5mm ID x 47.42mm OD x 13.2mm L

2шт.

9

86521602

SUPPORT

2шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

11

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

12

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

13

280519

SELF-TAP SCREW,Hex, 5/16" - 12 x 1"

10шт.

14

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

15

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

20шт.

16

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

17

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

19

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Inc 20

2шт.

20

86548282

BALL BEARING,29.41mm ID x 90mm OD x 30.2mm W, Square Bore

2шт.

21

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.
