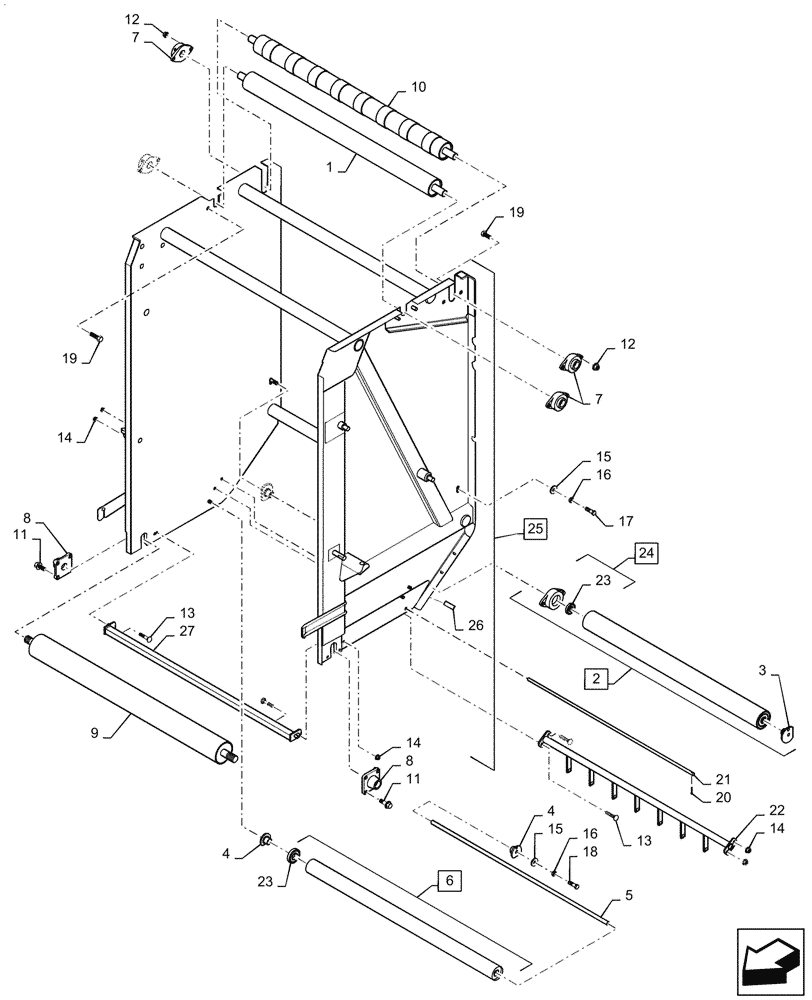

Запчасти Case IH RB565 (62.140.AC[03]) - TAILGATE ROLLS (62) - PRESSING - BALE FORMATION

1

84581000

ROLL

Tailgate Upper

1шт.

2

84601407

ROLL

Tailgate Middle, Incl 24

1шт.

3

86501067

SUPPORT

2шт.

4

86521602

SUPPORT

2шт.

5

87023401

SHAFT

1шт.

6

84600588

ROLL

Tailgate Bottom, Incl 23

1шт.

7

47538078

BEARING ASSY,40mm ID x 60.3mm H

4шт.

8

84098253

BEARING HOUSING

2шт.

9

87372981

ROLL

Tailgate Nose

1шт.

10

84561456

ROLL

Tailgate Top, Rubber Guide

2шт.

11

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

8шт.

12

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

13

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

8шт.

14

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

15

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

4шт.

16

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

17

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

18

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

19

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

8шт.

20

80756

COTTER PIN,1/8" x 3/4"

2шт.

21

9621329

ROD

1шт.

22

86626133

GUIDE

Belt

1шт.

23

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

24

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 23

2шт.

25

84394712

TAILGATE

Incl 26

1шт.

26

86547781

REFLECTOR,RED

2шт.

27

47515984

ANGLE

Scraper

1шт.
