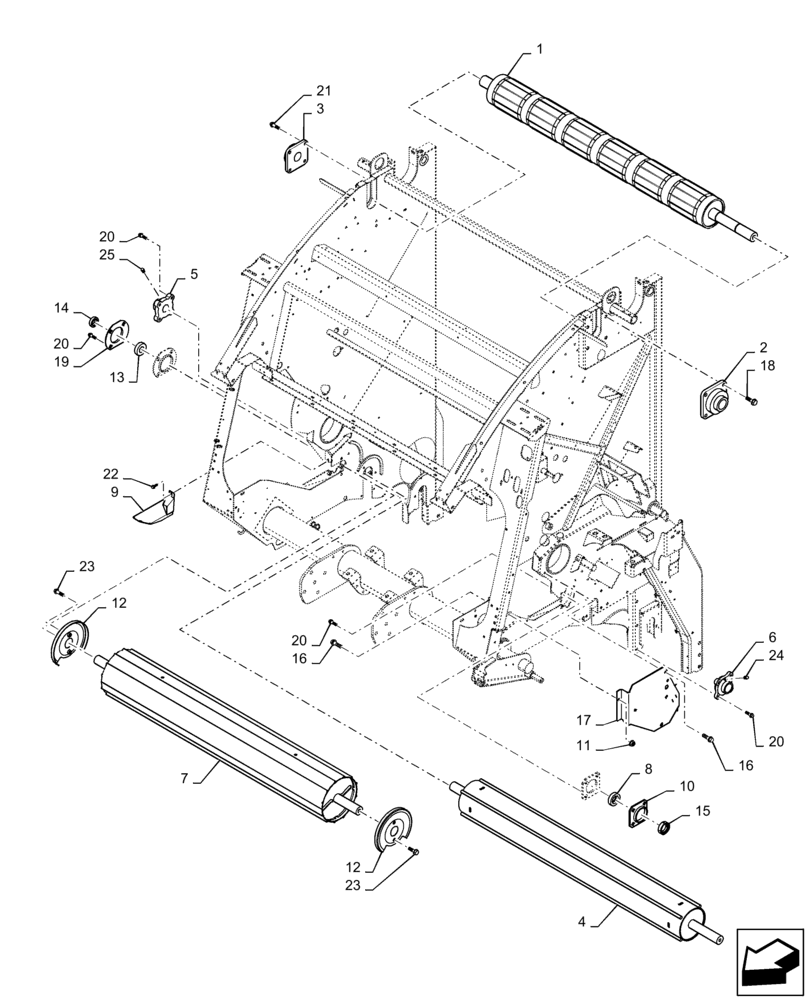

Запчасти Case IH RB565 (62.140.AC[02]) - VAR - 722000 - MAIN FRAME ROLLS, OVERSHOT FEEDER PICKUP (62) - PRESSING - BALE FORMATION

1

84544474

ROLL

Drive

1шт.

2

86590752

BEARING ASSY

M50 Bore

1шт.

3

87660332

BEARING ASSY,45mm ID

M45 Bore

1шт.

4

84514692

ROLL

Floor

1шт.

5

86590753

BEARING ASSY

M44 Bore, Torrington GVFD 40mm-A4433

1шт.

6

86610638

BEARING ASSY,45mm ID

M45 Bore, Torrington GVFD 45mm-A4433

1шт.

7

84405072

ROLL

Fixed

1шт.

8

133941

BALL BEARING,44.45mm ID x 84.99mm OD x 22mm W

1шт.

9

47582850

SHIELD

Filler

1шт.

10

86979948

FLANGE

M85 Sperical

1шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

12

47536123

SHIELD

2шт.

13

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

14

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

M38

1шт.

15

45631

COLLAR

M44.5

1шт.

16

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

17

47536132

PLATE

LH

1шт.

18

9804272

BOLT,Hex, M16 x 50mm, Cl 8.8, Full Thd

1шт.

19

86548973

FLANGE

M80 Sperical

4шт.

20

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

21

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

16шт.

22

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

23

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

24

80721

LUBE NIPPLE,1/4"-28 x 45 Degree

4шт.

25

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.
