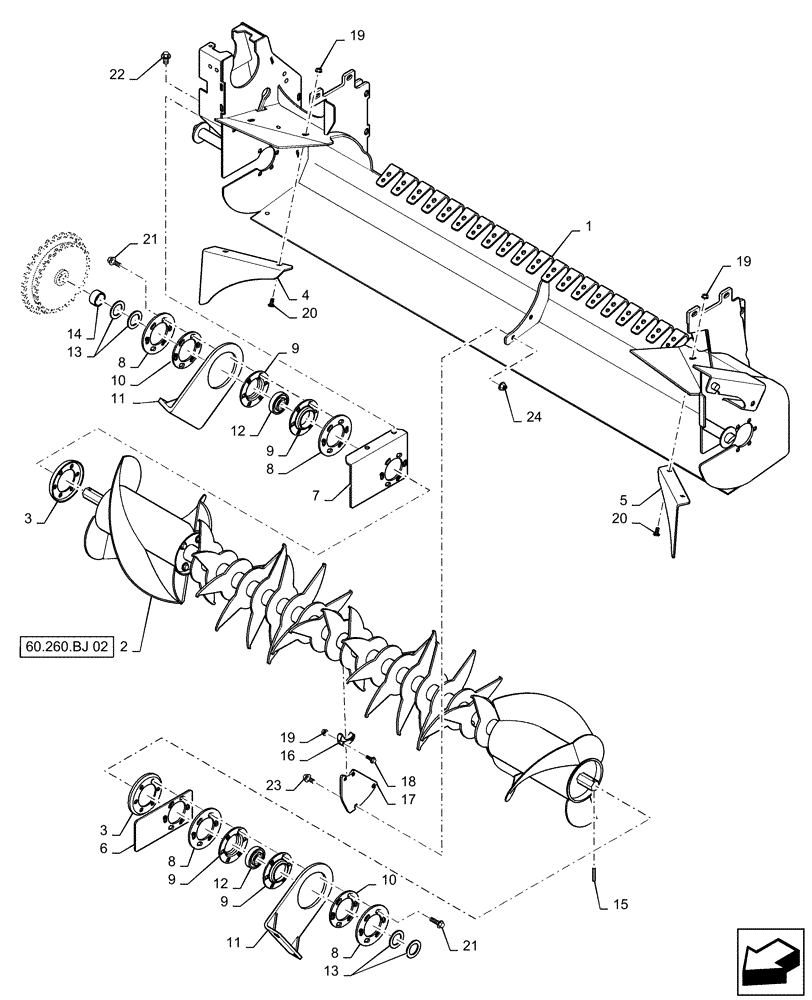

Запчасти Case IH RB565 (60.260.BJ[01]) - VAR - 726827, 726828 - OVERSHOT FEEDER, ASSEMBLY (60) - PRODUCT FEEDING

1

84427696

HOUSING

1шт.

2

0C

ORDER COMPONENTS

1шт.

3

84427232

COVER

2шт.

4

84427614

STRIPPER

1шт.

5

84427609

STRIPPER

1шт.

6

84427552

SHIELD

1шт.

7

84427228

SHIELD

1шт.

8

84399287

RING,82mm ID x 140mm OD x 1.98mm Thk

4шт.

9

138820

FLANGED BEARING

4шт.

10

84399284

RING

2шт.

11

84419671

PIVOT

2шт.

12

84324246

SPHERICAL BEARING,31.75mm ID x 72mm OD x 25mm Thk

2шт.

13

47431597

SPACER,Hex, 33mm ID x 45mm OD x 1.98mm Thk

4шт.

14

84427184

SPACER,37.3mm ID x 45.3mm OD x 22.5mm Thk

1шт.

15

87343

LOCK PIN,6.35mm OD x 44.45mm L, Slotted

2шт.

16

84414114

SUPPORT

1шт.

17

84427224

SUPPORT

1шт.

18

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

20

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

21

9804263

BOLT,M10 x 49.2mm, Cl 8.8

12шт.

22

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

23

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.
