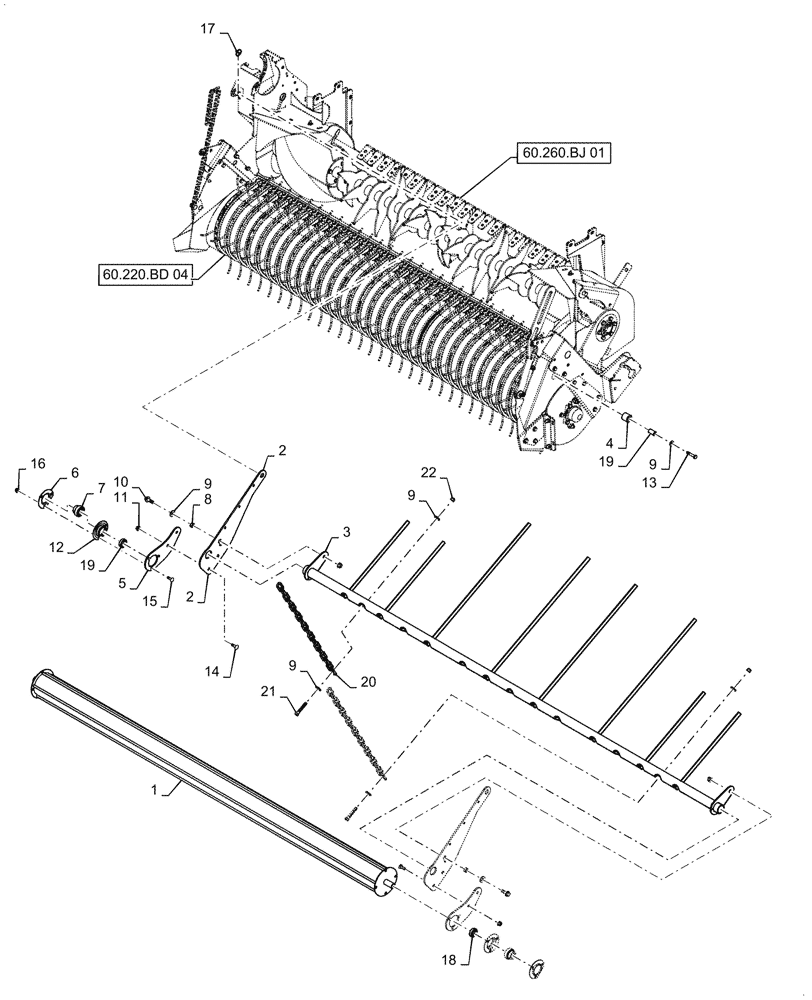

Запчасти Case IH RB565 (60.220.CC[03]) - VAR - 726654 - ROLLER WINDGUARD, 2M 5-BAR OVERSHOT FEEDER (60) - PRODUCT FEEDING

1

84488984

ROLLER

2M 5-Bar Overshot Rotor

1шт.

2

84425604

ARM

2шт.

3

84555266

WINDGUARD

1шт.

4

47361097

SPACER,20mm ID x 34.9mm OD x 31mm L

2шт.

5

84426074

ARM

2шт.

6

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

4шт.

7

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

8

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

10

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

12

47505113

BEARING HOUSING

2шт.

13

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

14

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

15

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

17

86508947

LINCH PIN,18.8mm OD

2шт.

18

47507709

SPACER,24.88mm ID x 41mm OD x 13mm Thk

2шт.

19

84563993

SPACER,10.31mm ID x 18.24mm OD x 33.53mm L

2шт.

20

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

21

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

22

9637692

NUT,3/8"-16, GB

2шт.
