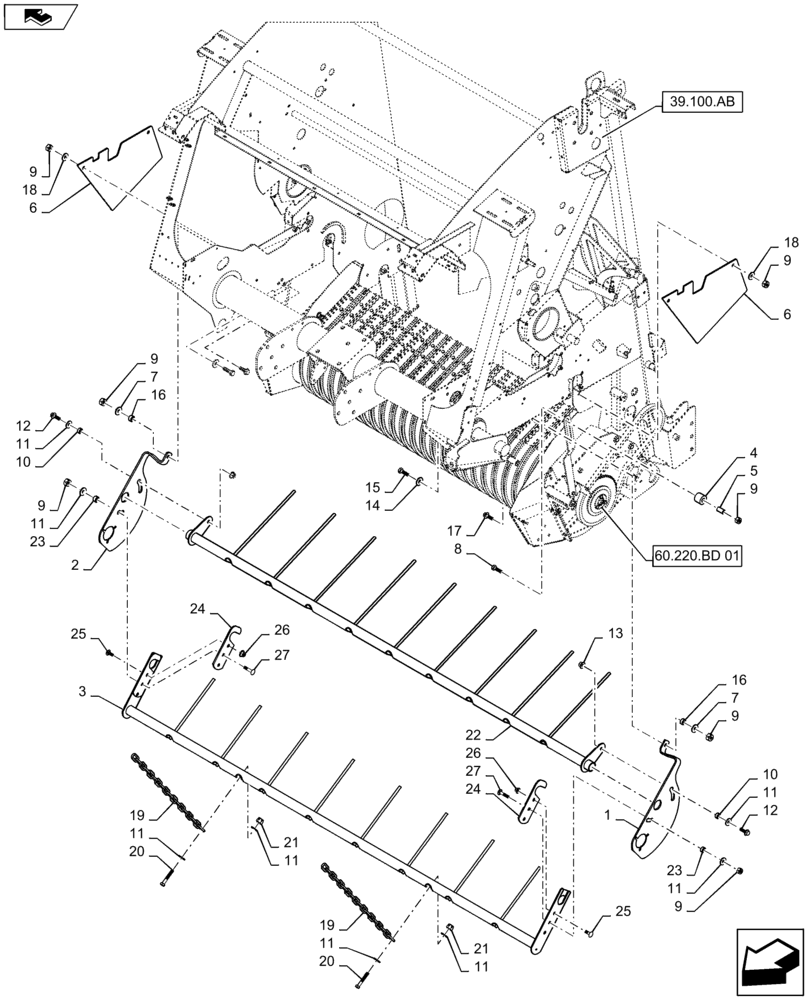

Запчасти Case IH RB565 (60.220.CC[01]) - VAR - 726816 - WINDGUARD, 1.5M STANDARD PICKUP (60) - PRODUCT FEEDING

1

84541913

ARM

LH

1шт.

2

84541910

ARM

RH

1шт.

3

84599271

WINDGUARD

1шт.

4

47361097

SPACER,20mm ID x 34.9mm OD x 31mm L

2шт.

5

84563993

SPACER,10.31mm ID x 18.24mm OD x 33.53mm L

2шт.

6

84492976

FLAP

2шт.

7

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

2шт.

8

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

2шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

10

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

2шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

12

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

14

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

2шт.

15

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

16

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

2шт.

17

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

18

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

4шт.

19

47400899

CHAIN

2шт.

20

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

21

9637692

NUT,3/8"-16, GB

2шт.

22

84511590

WINDGUARD

1шт.

23

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

2шт.

24

47467993

RETAINER

2шт.

25

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

27

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

2шт.
