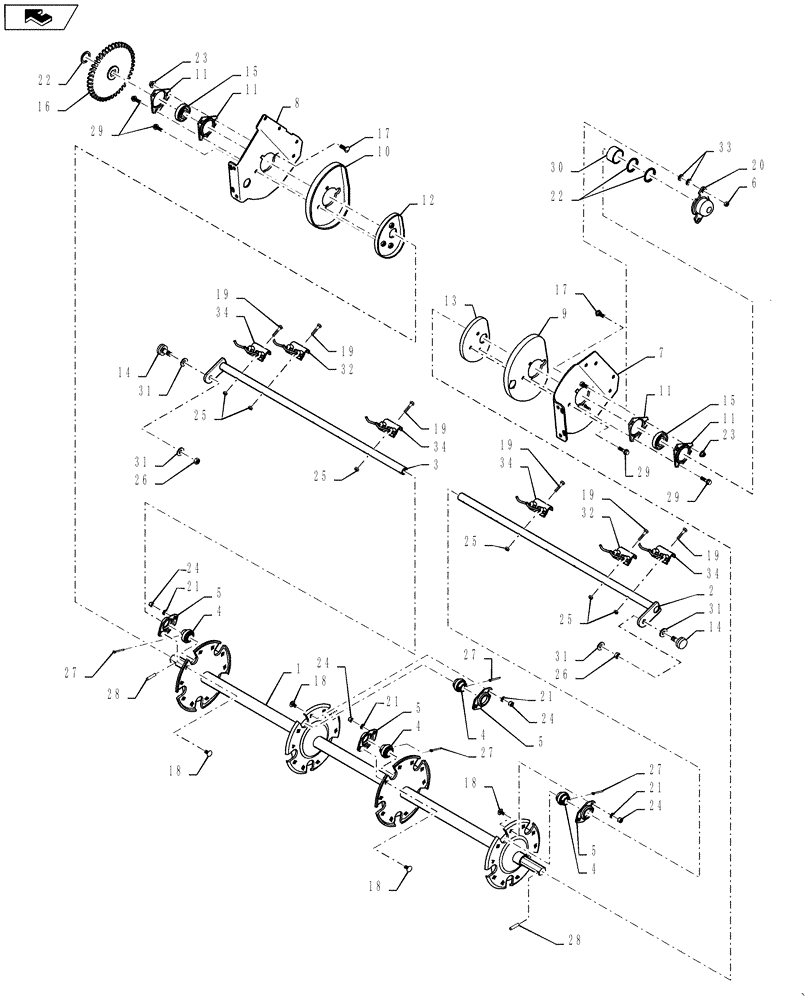

Запчасти Case IH RB565 (60.220.BG[04]) - VAR - 726918 - 2M REEL 5-BAR, RUBBER MOUNTED TINES (60) - PRODUCT FEEDING

1

84405631

REEL

1шт.

2

84405642

TINE BAR

LH

5шт.

3

84405638

TINE BAR

RH

5шт.

4

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

20шт.

5

54695

BEARING HOUSING

20шт.

6

100038

NUT,M12 x 1.75, Cl 8

2шт.

7

84532234

PLATE

LH

1шт.

8

84424256

PLATE

RH

1шт.

9

84291845

CAM

LH Outer

1шт.

10

84291843

CAM

RH Outer

1шт.

11

578189

FLANGE

4шт.

12

84327847

CAM

RH Inner

1шт.

13

84327846

CAM

LH Inner

1шт.

14

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

10шт.

15

84324246

SPHERICAL BEARING,31.75mm ID x 72mm OD x 25mm Thk

2шт.

16

84362185

SPROCKET

40T, RC60

1шт.

17

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

18

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

40шт.

19

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

80шт.

20

47390411

COVER

1шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

40шт.

22

47431597

SPACER,Hex, 33mm ID x 45mm OD x 1.98mm Thk

3шт.

23

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

24

9637692

NUT,3/8"-16, GB

40шт.

25

86629544

NUT,5/16” – 18, GR B

80шт.

26

88130

NUT,1/2"-20, GC

10шт.

27

136521

COTTER PIN,5.7mm OD x 44.45mm L

20шт.

28

47432155

COILED PIN,7/32" OD x 1-3/4" L

2шт.

29

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

6шт.

30

84427184

SPACER,37.3mm ID x 45.3mm OD x 22.5mm Thk

1шт.

31

84420719

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

20шт.

32

84404537

TINE,2 Prong, 96.5mm W x 162.4mm L

60шт.

33

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

34

47395016

TINE

20шт.
