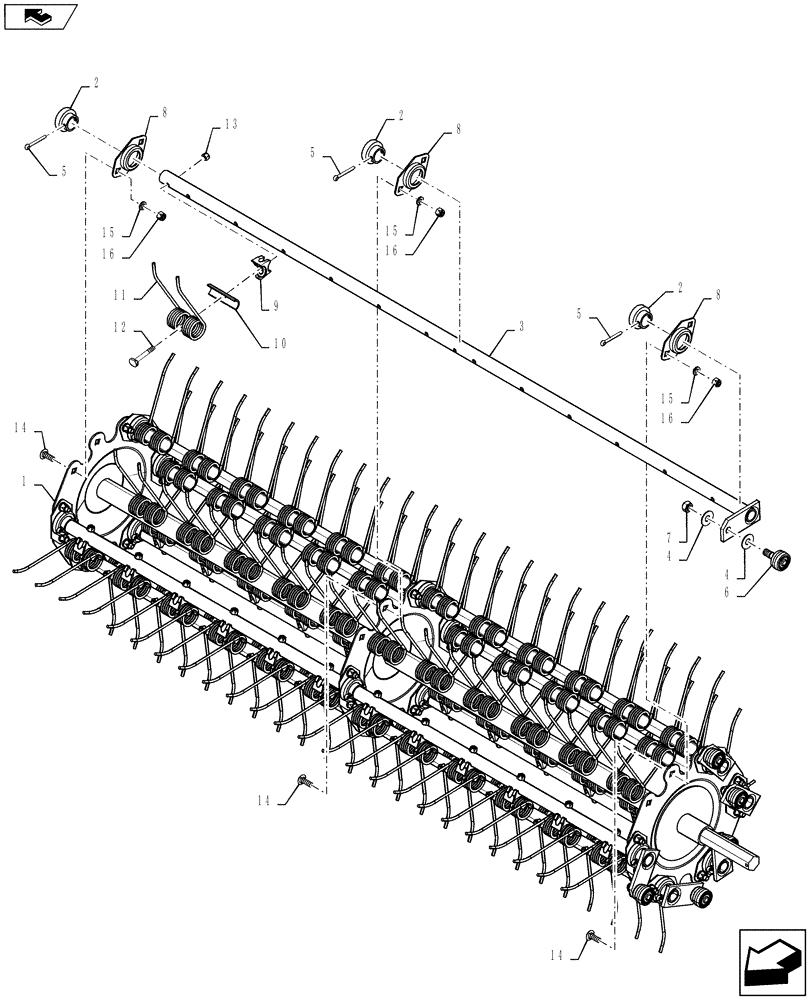

Запчасти Case IH RB565 (60.220.BG[01]) - VAR - 726861 - 1.5M STANDARD PICK-UP REEL, 6-BAR (60) - PRODUCT FEEDING

1

47442161

REEL

1шт.

2

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

16шт.

3

84574062

TINE BAR

6шт.

4

84420719

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

12шт.

5

136521

COTTER PIN,5.7mm OD x 44.45mm L

18шт.

6

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

6шт.

7

88130

NUT,1/2"-20, GC

6шт.

8

54695

BEARING HOUSING

18шт.

9

84427925

TINE BAR

72шт.

10

134921

BRACKET

72шт.

11

84133738

TINE

72шт.

12

130891

BOLT,Tine, 5/16" - 18 x 2"

72шт.

13

86629544

NUT,5/16” – 18, GR B

72шт.

14

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

36шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

36шт.

16

9637692

NUT,3/8"-16, GB

36шт.
