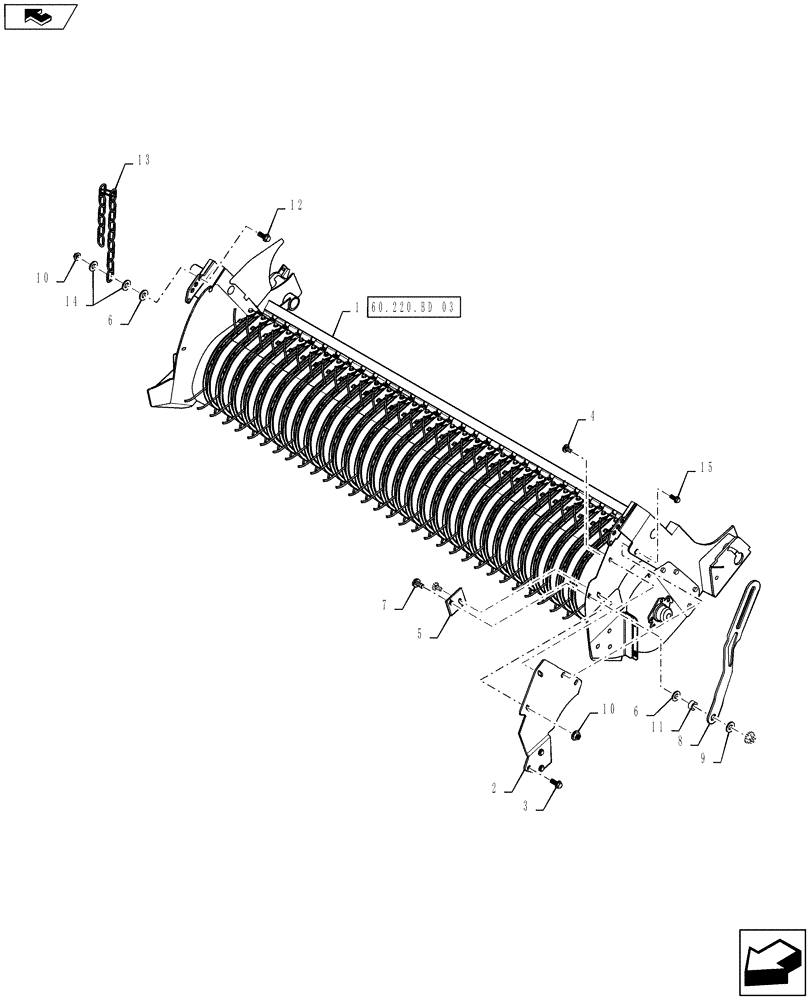

Запчасти Case IH RB565 (60.220.BD[08]) - VAR - 726861 - 2M 4-BAR PICKUP MOUNTING PARTS (60) - PRODUCT FEEDING

1

0C

ORDER COMPONENTS

2M 4-Bar Overshot Rotor Pickup Assembly

1шт.

2

84353327

MOUNT

LH

1шт.

3

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

3шт.

4

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

5

84569145

MOUNT

1шт.

6

48917

WASHER

2шт.

7

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

8

84518496

LINK

1шт.

9

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

1шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

11

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

1шт.

12

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

13

47516607

CHAIN

1шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

15

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.
