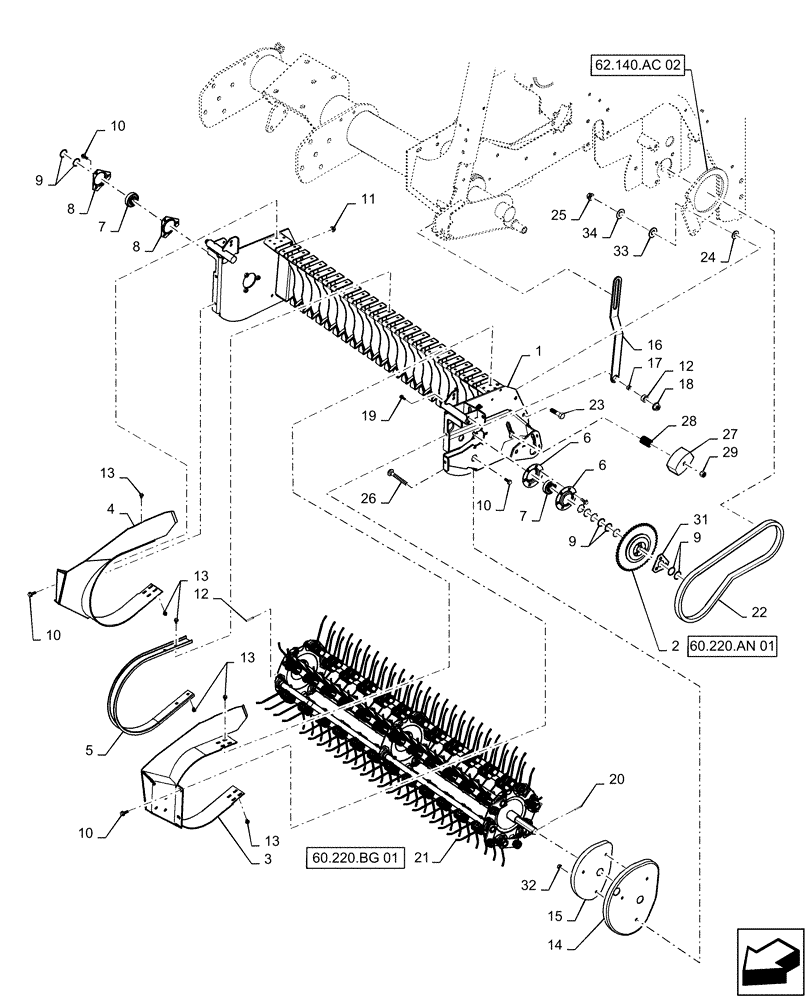

Запчасти Case IH RB565 (60.220.BD[01]) - VAR - 726861 - 1.5M STANDARD PICK-UP (60) - PRODUCT FEEDING

1

84370710

FRAME

Pickup, 1.5M Standard

1шт.

2

0C

ORDER COMPONENTS

Slip Clutch

1шт.

3

47449273

GUIDE

LH

1шт.

4

47449257

GUIDE

RH

1шт.

5

84370744

GUARD

23шт.

6

138820

FLANGED BEARING

2шт.

7

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

2шт.

8

578189

FLANGE

2шт.

9

164999

WASHER

10шт.

10

9804262

BOLT,M10 x 39.2mm, Cl 8.8

15шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

12

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

1шт.

13

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

108шт.

14

86636761

CAM

Outer

1шт.

15

47563339

CAM

Inner

1шт.

16

84539725

LINK

1шт.

17

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

19

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

20

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

21

0C

ORDER COMPONENTS

Reel Assembly, 1.5M Standard Pickup

1шт.

22

47434872

CHAIN

Inc 30

1шт.

23

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

24

87642988

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

12шт.

25

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

26

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

27

87030996

IDLER

1шт.

28

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

5шт.

29

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

30

84545610

CONNECTING LINK

1шт.

Not Illustrated

1шт.

31

80707372

BRACKET

1шт.

32

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

33

84333209

SHIM

2.5mm

4шт.

34

84333207

SHIM

1mm

2шт.
