(60.220.AU[02]) - VAR - 449000 - PICK-UP WHEEL - LH , 4 PLY, 4.80/4.00 X 8

Запчасти Case IH RB565 (60.220.AU[02]) - VAR - 449000 - PICK-UP WHEEL - LH , 4 PLY, 4.80/4.00 X 8 (60) - PRODUCT FEEDING

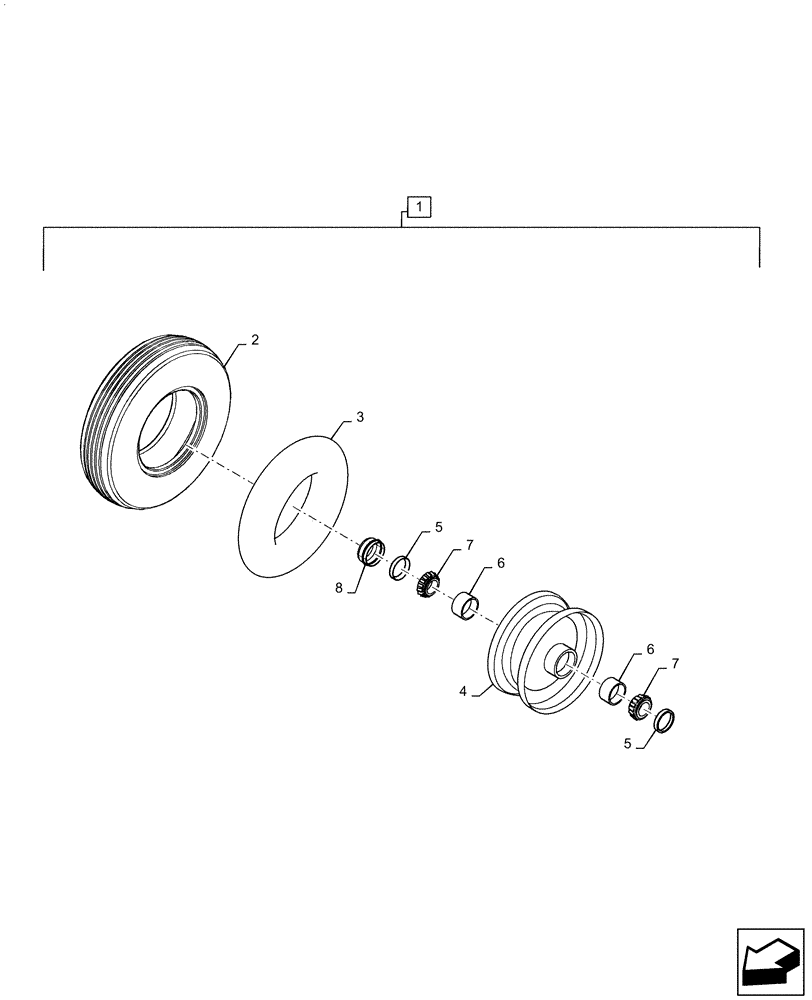

Схема запчастей Case IH RB565 - (60.220.AU[02]) - VAR - 449000 - PICK-UP WHEEL - LH , 4 PLY, 4.80/4.00 X 8 (60) - PRODUCT FEEDING
2
5
8
5
1
3
7
6
6
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86616348

WHEEL

Incl 2 - 11

2шт.

2

136378

TYRE/TIRE

4 Ply, 4.80/4.00 x 8

2шт.

3

25447

TIRE TUBE

Inner, 4 x 8

2шт.

4

86616348

WHEEL

Hub

2шт.

5

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

Oil

2шт.

6

132709

BEARING CUP,50.29mm OD x 10.67mm W

4шт.

7

132710

BEARING CONE,25.4mm ID x 14.73mm W

4шт.

8

200734

HUB CAP

2шт.

Выбрано товаров: 8
