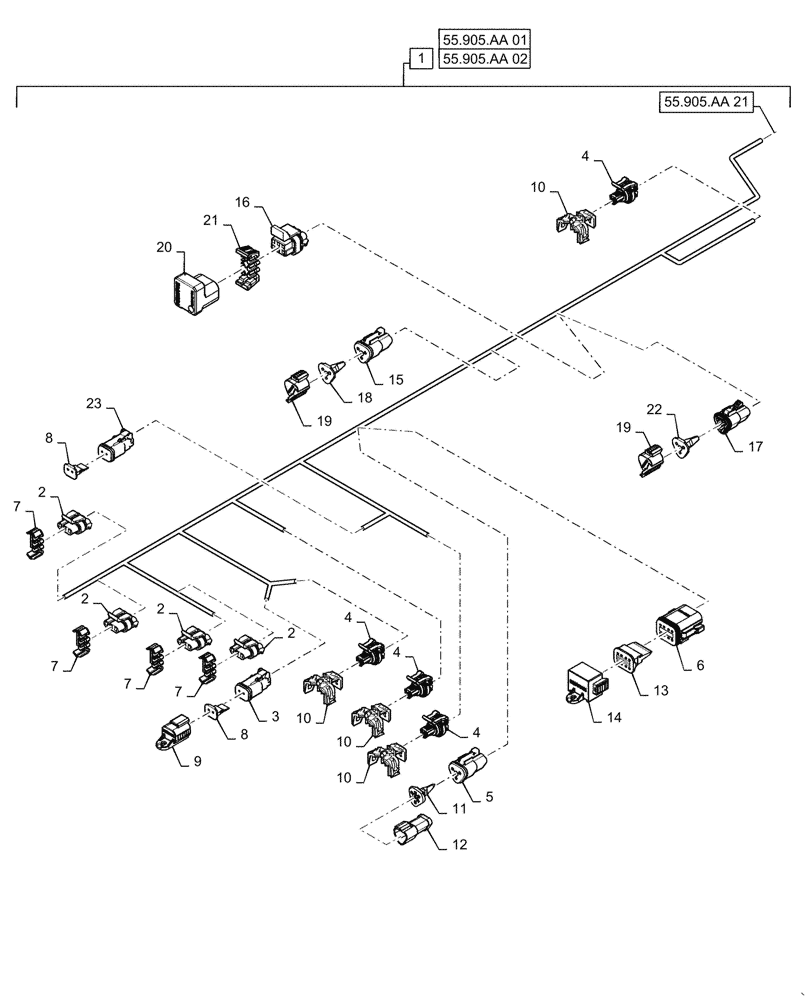

Запчасти Case IH RB565 (55.905.AA[20]) - VAR - 726967, 726969 - WIRE HARNESS, ISOBUS, BETWEEN YFN18619 AND YGN190460 (55) - ELECTRICAL SYSTEMS

1

47655927

WIRE HARNESS

ISOBUS, Between YFN188619 and YGN190460

1шт.

Incl Figs. 55.905.AA 20, 21, 22

1шт.

2

87688716

ELEC CONNECTOR,Female, 3 Cavities

5шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

1шт.

4

47690389

ELEC CONNECTOR,Female, 3 Cavities

2шт.

5

87695580

ELEC CONNECTOR,Female, 3 Pole

1шт.

6

87700325

ELEC CONNECTOR,Female, 8 Cavities

1шт.

7

87693732

LOCKING TAB,Wedge Lock

1шт.

8

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

9

84391159

WIRE CONNECTOR

1шт.

10

84598834

LOCKING TAB,Wedge Lock

1шт.

11

84147090

LOCKING TAB,Wedge Lock

1шт.

12

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

13

84806312

LOCKING TAB,Wedge Lock

1шт.

14

84391168

CAP

1шт.

15

87695580

ELEC CONNECTOR,Female, 3 Pole

1шт.

16

87694714

ELEC CONNECTOR,Female, 6 Cavities

1шт.

17

47486969

ELEC CONNECTOR,Female 3 Cavities, Red

1шт.

18

84074639

LOCKING TAB,Wedge Lock

1шт.

19

84391165

HOUSING,Male, 3 Pins

2шт.

20

87601142

ELEC CONNECTOR,Female, 6 Cavities

1шт.

21

87694719

LOCKING TAB,Wedge Lock

1шт.

22

84277224

LOCKING TAB,Wedge Lock

1шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

1шт.
