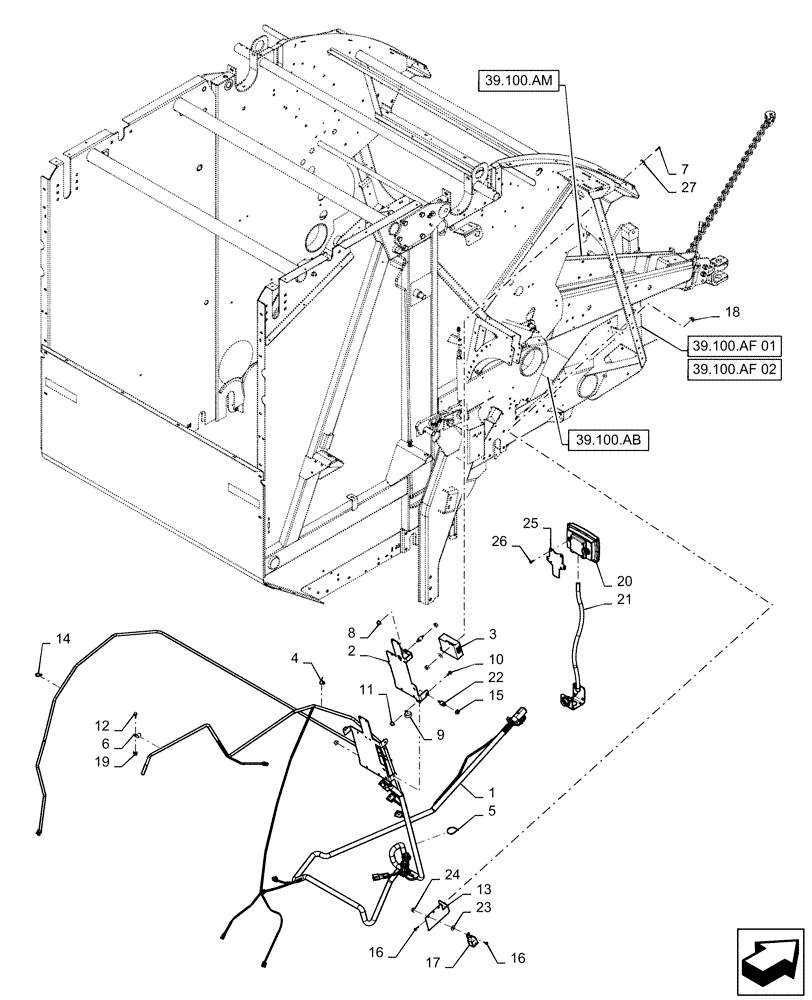

Запчасти Case IH RB565 (55.640.AB[01]) - VAR - 726965 - STANDARD WRAPPER, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

47504521

WIRE HARNESS

Twine, BA, Serial Range: -YGN190998

1шт.

1

47938504

WIRE HARNESS

Twine, BA, Start Serial: YGN190999

1шт.

2

47487624

SUPPORT

1шт.

3

47572629

ECU

1шт.

4

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

11шт.

5

86566989

CABLE TIE,208mm L

19шт.

6

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

14304221

HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd

2шт.

8

86507065

NUT,M5 x .8, Cl 10

2шт.

9

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

9шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

13

47428546

BRACKET

1шт.

14

87034173

CABLE TIE,774.7mm L

3шт.

15

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

16

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

17

82017871

RELAY,12V, 20A

3шт.

18

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

19

86610200

THREADED INSERT,M8 x 1.25

2шт.

20

47439776

CONTROL PANEL

1шт.

21

84566253

WIRE HARNESS

Cab, Twine, Serial Range: -YGN191545

1шт.

21

47938513

WIRE HARNESS

Cab, Twine, Start Serial: YGN191546

1шт.

22

86522829

SILENTBLOC

3шт.

23

319725A1

RUBBER WASHER

5шт.

24

86619800

FLANGE NUT,M6 x 1, Cl 8

3шт.

25

47691332

MOUNTING PLATE

1шт.

26

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

4шт.

27

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

28

47636750

WIRE HARNESS

Power Swap

1шт.

Used on tractors that have switched and un-switched power wires.

1шт.

29

47538417

WIRE HARNESS

Battery, Cab

1шт.

30

83933689

FUSE,10A, Red

1шт.

31

84157159

FUSE,40A, Maxi, Orange

1шт.

32

47545581

ROCKER SWITCH

On/Off

1шт.
