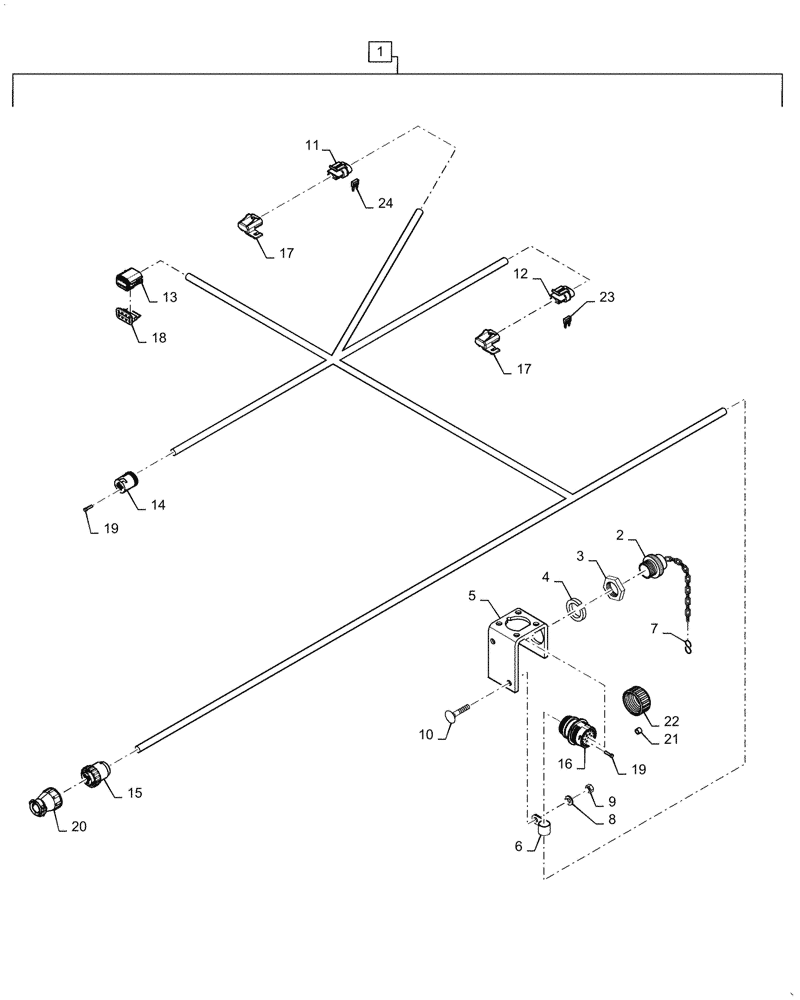

Запчасти Case IH RB565 (55.630.AF[01]) - VAR - 726965 - WIRE HARNESS, TRACTOR CAB, YGN191545 AND PRIOR (55) - ELECTRICAL SYSTEMS

1

84566253

WIRE HARNESS

Cab, Incl 2 - 22

1шт.

2

767456

PLUG

1шт.

3

87271930

NUT

1шт.

4

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

5

787868

BRACKET

1шт.

6

87612756

CLAMP,25.4mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

7

617887

HOOK

1шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

10

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

11

47674223

ELEC CONNECTOR,Female, 2 Cavities

Uses 24

1шт.

12

87688712

WIRE CONNECTOR,Female

Uses 23

1шт.

13

84277215

ELEC CONNECTOR,Female, 8 Cavities

1шт.

14

84074255

CONTACT HOUSING,Male, 9 Pole

1шт.

15

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

1шт.

16

84384515

MULTIPOLE CONNECTOR,Female, 21 Cavities

1шт.

17

87688863

CAP

1шт.

18

84277231

LOCKING TAB,Wedge Lock

1шт.

19

84068583

PLUG,12 - 16 Ga, White

1шт.

20

84471900

DUST CAP

1шт.

21

87695199

SPACER

1шт.

22

87696197

NUT

1шт.

23

9623775

FUSE,5 Amp

1шт.

24

9846342

FUSE,25A

1шт.

25

87696199

SEALING RING

1шт.

26

87696197

NUT

1шт.
