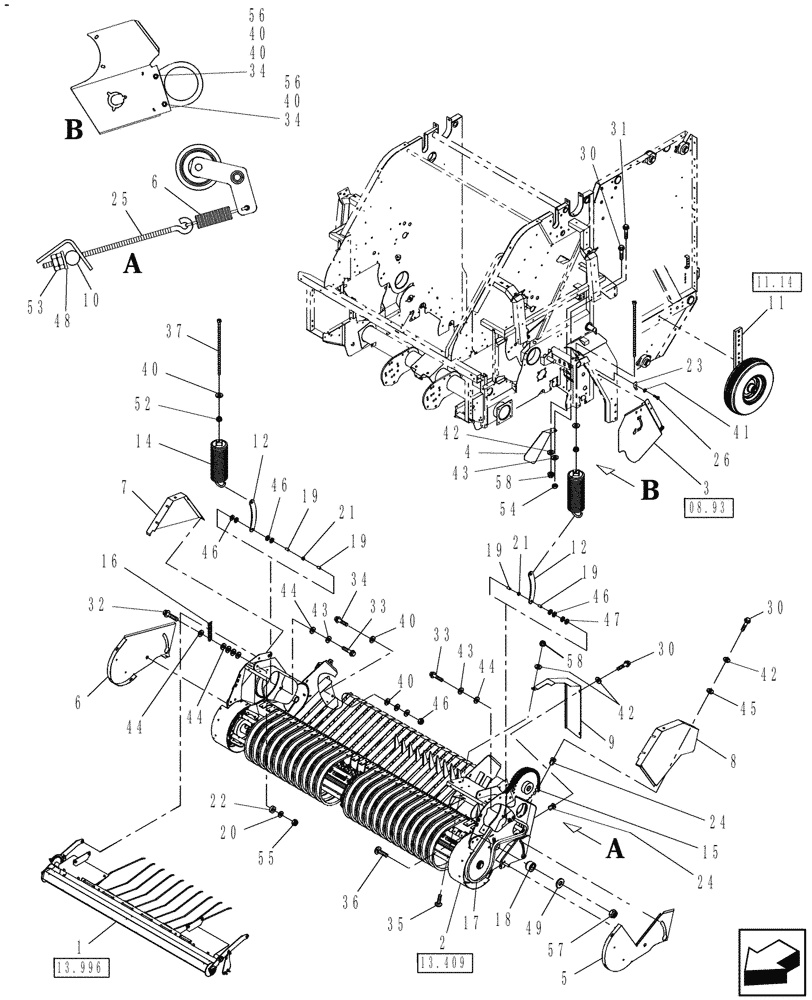

Запчасти Case IH RB564 (13.411[2]) - 2M WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA, CORNSTALK SPECIAL (13) - FEEDER

1

0C

ORDER COMPONENTS

Windguard

1шт.

84318900

1шт.

2

0C

ORDER COMPONENTS

Pickup

1шт.

84298536

1шт.

3

0C

ORDER COMPONENTS

Shields, Stuffer Feeder

1шт.

87034909

1шт.

4

87017232

SHIELD

1шт.

5

86626383

SHIELD

LH, Lower

1шт.

6

86625649

SHIELD

RH, Lower

1шт.

7

87055752

SHIELD

RH Upper

1шт.

8

86626278

SHIELD

LH Upper

1шт.

9

87045487

SHIELD

1шт.

10

87050048

ROCKER

1шт.

11

0C

ORDER COMPONENTS

Pickup Tire

2шт.

87050048

1шт.

12

87040006

LINK ASSY.

2шт.

13

86566303

SPRING

2шт.

14

87656382

SPRING

2шт.

15

854233

KIT,60-HE, 62 Links x 19.05mm = 1181.1mm

Roller, RC 60, 62 Pitches

1шт.

16

86631510

CHAIN,850.9mm L

RC50, 100 Pitches, Includes: Ref. 29

1шт.

17

87028682

CHAIN (AG)

RC50, 100 Pitches, Includes: 25194 Connector Link

1шт.

18

86613200

IDLER,89mm OD x 47.7mm W

1шт.

19

705996

BUSHING

7/8" L

4шт.

20

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

2шт.

21

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

2шт.

22

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

2шт.

23

47325

CLIP

Snap

2шт.

24

86610198

INSERT,M6 x 1

Threaded, M6

12шт.

25

86628567

EYEBOLT

G2, 3/8"-16 x 8-3/4"

1шт.

26

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

1шт.

29

25194

CONNECTING LINK

1шт.

Not Illustrated

1шт.

30

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

19шт.

31

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

32

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

33

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

34

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

35

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

36

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

1шт.

37

86632865

BOLT,444.50mm

1/2"-13 x 17-1/2" L

2шт.

40

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

18шт.

41

280254

LOCK WASHER,5.18mm ID x 9.68mm OD x 0.64mm Thk

1шт.

42

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20шт.

43

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

44

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

45

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

8шт.

46

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6/ARшт.

47

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

48

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

49

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

52

280431

NUT,1/2"-13, G5

2шт.

53

9628503

NUT,3/8"-16, G5

2шт.

54

100016

NUT,M10 x 1.5, Cl 8

1шт.

53

9628503

NUT,3/8"-16, G5

2шт.

54

100016

NUT,M10 x 1.5, Cl 8

2шт.

55

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

56

100038

NUT,M12 x 1.75, Cl 8

4шт.

57

86000441

NUT,M16 x 2.0, Cl 8

Prevailing Torque

1шт.

58

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

62

165109

DECAL

Lube Fitting

2шт.

Not Illustrated

1шт.
