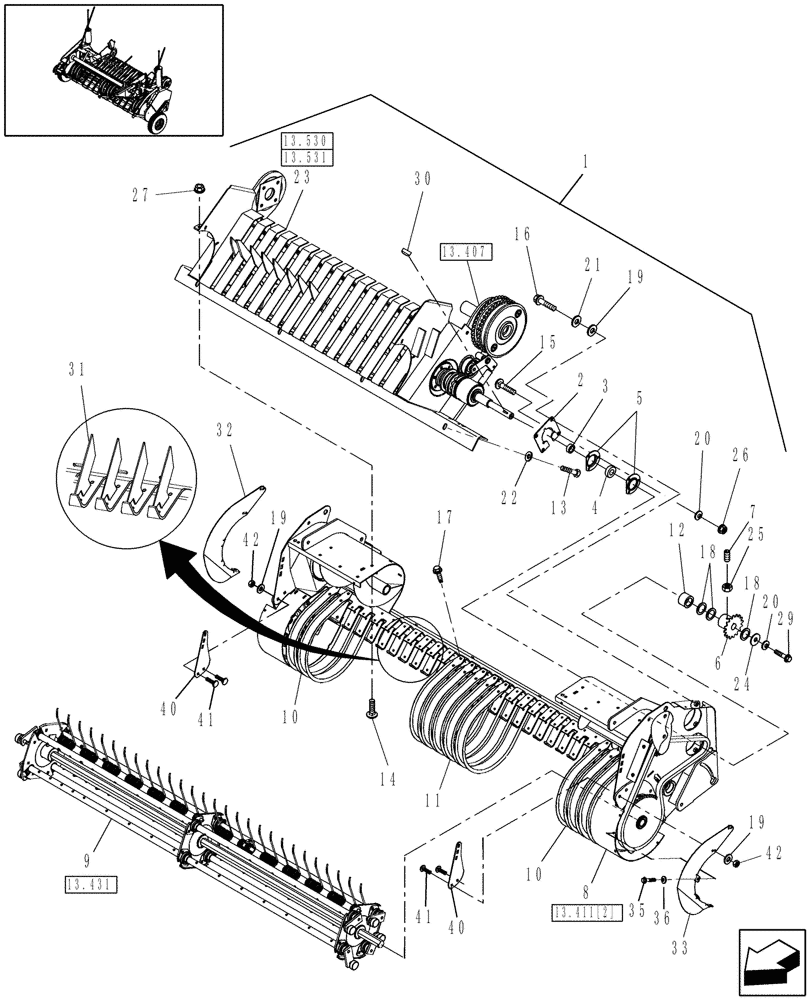

Запчасти Case IH RB564 (13.409) - 2M WIDE PICKUP, STUFFER FEEDER, NORTH AMERICA (13) - FEEDER

1

87056380

PICK-UP

2M Wide & Stuffer Feeder

1шт.

2

87042087

PLATE

, Serial Range: -Y9N043084

1шт.

2

84173517

PLATE

, Start Serial: Y9N043085

1шт.

3

455102R21

COLLAR

Locking, Includes: Set Screw, Serial Range: -Y9N043084

1шт.

3

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

Locking, Includes: Set Screw, Start Serial: Y9N043085

1шт.

4

214366C91

BALL BEARING,25.40mm ID x 52mm OD

, Serial Range: -Y9N043084

1шт.

4

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

, Start Serial: Y9N043085

1шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing, Serial Range: -Y9N043084

2шт.

5

87758679

FLANGED BEARING

Bearing, Start Serial: Y9N043085

2шт.

6

86610143

SPROCKET

17T, RC 50, Standard

1шт.

6

87055082

SPROCKET

18T, RC 50, Optional

1шт.

6

87602188

SPROCKET

17T, No Set Screw Required

1шт.

7

300483

SET SCREW,M10 x 25mm

2шт.

8

0C

ORDER COMPONENTS

2M Stuffer, Wide Pickup

1шт.

9

0C

ORDER COMPONENTS

2M Spider, Stuffer

1шт.

10

86643381

GUARD

10шт.

11

87055363

GUARD ASSY.

21шт.

12

86640795

SPACER,25.65mm ID x 31.75mm OD x 20.06mm L

, Serial Range: -Y9N043084

1шт.

13

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

14

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

, Serial Range: -Y9N043084

3шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

, Start Serial: Y9N043085

3шт.

16

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

17

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

124шт.

18

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

, Serial Range: -Y9N043084

3шт.

18

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

, Start Serial: Y9N043085

4шт.

19

495-21044

WASHER,3/8"

8шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Serial Range: -Y9N043084

4шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: Y9N043085

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -Y9N043084

4шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: Y9N043085

7шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

23

0C

ORDER COMPONENTS

Stuffer Feeder, Center Crank

1шт.

87046253

1шт.

24

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1шт.

25

825-1410

NUT,M10, Cl 8

2шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

26

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

, Serial Range: -Y9N043084

3шт.

27

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

28

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

29

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

30

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

31

87034858

FILLER

Filler, Optional

31шт.

Welding Required

1шт.

32

84324676

GUARD

RH

1шт.

Optional for Improved Feeding

1шт.

33

87053734

GUARD

LH

1шт.

Optional for Improved Feeding

1шт.

34

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

35

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

6шт.

36

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

40

84252192

SUPPORT

2шт.

41

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

4шт.

42

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
