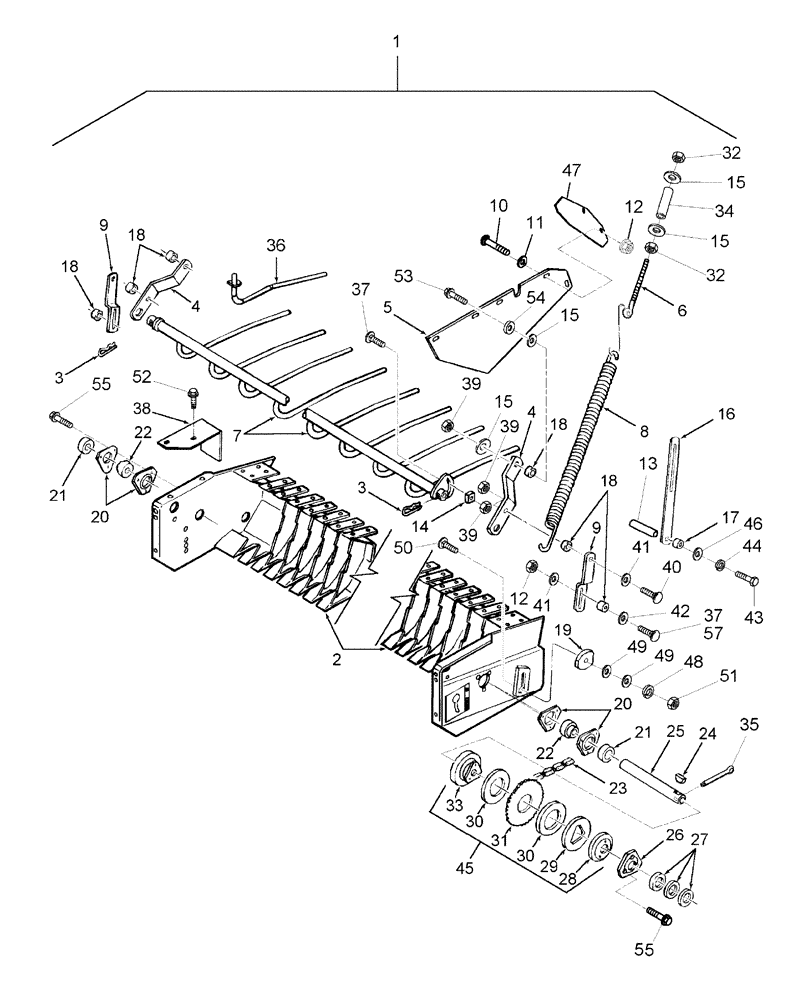

Запчасти Case IH RB564 (13.140) - STANDARD PICKUP, FRAME, WINDGUARD & SLIP CLUTCH (13) - FEEDER

1

87037383

PICK-UP

Standard, Includes: Fig. 13.140 & 13.145

1шт.

2

87041204

FRAME

Pickup

1шт.

3

86000109

COTTER PIN

1/8" x 3-1/4"

2шт.

4

86636887

BAR

2шт.

5

86621364

SHIELD

2шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

6

708460

EYEBOLT

3/8"-16 x 7"

2шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

7

86636997

GUARD ASSY.

Windguard

1шт.

8

86553570

SPRING

Extension

2шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

9

86636888

CONNECTING LINK

2шт.

10

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

8шт.

11

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

8шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

12

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

13

86636721

SPACER

1шт.

14

44612

SPACER

Washer

2шт.

15

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Hardened, 3/8"

4шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

16

86631192

ANGLE

1шт.

17

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

1шт.

18

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

6шт.

19

86584050

IDLER

Nylon

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

20

662649R1

RETAINER

Bearing

4шт.

21

557115R11

COLLAR

2шт.

22

455960R92

BEARING, BALL,1.1255" ID x 2.4409" OD x 0.9375"

2шт.

23

9828289

CHAIN,A2050, 48 Links x 31.75mm = 1524mm

#2050, 48 Pitches, Drive, Includes: (1) 25193 Connector Link

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

24

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

1шт.

25

86512181

SHAFT

Pickup

1шт.

26

80707372

BRACKET

1шт.

27

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

6шт.

28

121092

BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk

1шт.

29

86627129

CLUTCH PLATE

1шт.

30

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

2шт.

31

86536128

DRIVEN SPROCKET

& Bushing, 48T, Includes: Ref. 56

1шт.

32

425-106

NUT,3/8"-16, Cl 5

4шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

33

86635141

HUB

Clutch

1шт.

34

647474

SPACER

2-1/4"

2шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

35

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

36

86636750

TINE

12шт.

Welding Required

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

37

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

18шт.

38

86637163

SHIELD

1шт.

39

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

40

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

41

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

4шт.

42

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

43

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

44

492-11038

LOCK WASHER,3/8"

1шт.

45

86635138

SLIP CLUTCH

1шт.

46

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

1шт.

47

86621363

PLATE

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

48

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

49

495-21056

WASHER,1/2"

2шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

50

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

51

825-1412

NUT,M12, Cl 8

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

52

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

53

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

54

86643939

SPACER

5/8" Thk

2шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

55

905-10020

BOLT,Hex Flg, M10 x 20mm

2шт.

56

49686

BUSHING,76mm ID x 82.68mm OD x 7.62mm L

1шт.

Not Illustrated

1шт.

Shown for Reference Only. Not Included with Ref. 1

1шт.

57

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.
