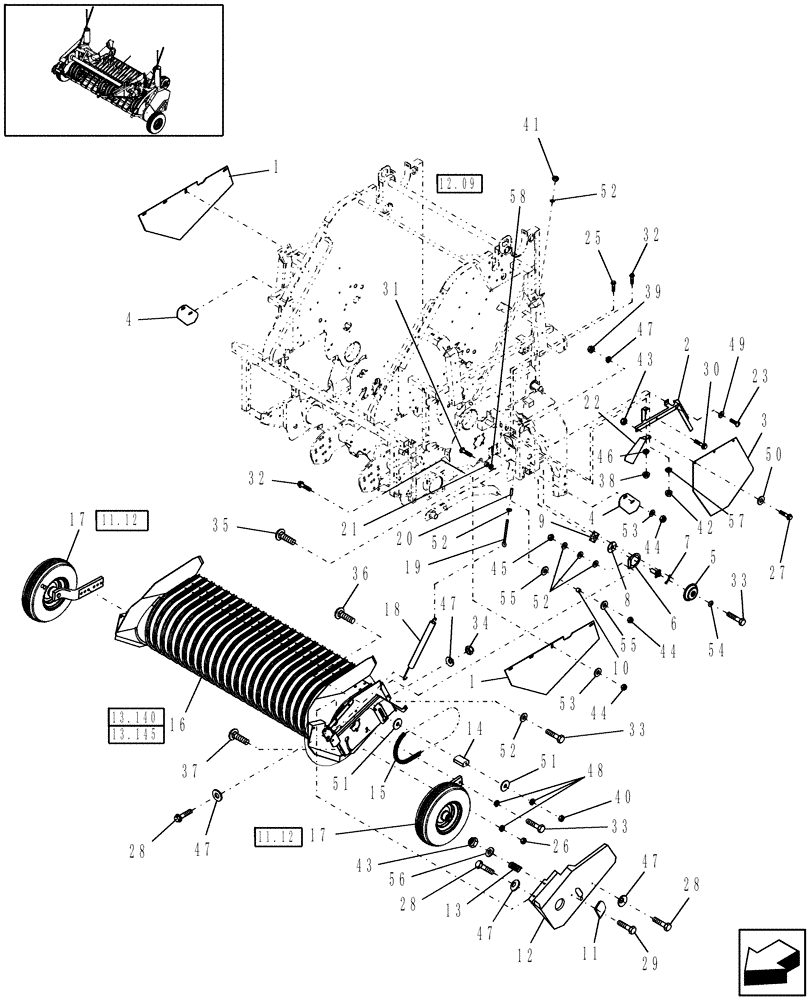

Запчасти Case IH RB564 (13.105) - STANDARD PICKUP MOUNTING (13) - FEEDER

1

86621364

SHIELD

2шт.

2

86978592

BRACKET

1шт.

3

86837140

SHEET

1шт.

4

86621363

PLATE

2шт.

5

86618109

SPROCKET

1шт.

6

86602047

PIVOT PLATE

2шт.

7

86602446

ANGLE

2шт.

8

86602046

PLATE

2шт.

9

86602143

WEAR PLATE

2шт.

10

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

2шт.

11

86619617

SHIELD

1шт.

12

86900176

SHIELD

1шт.

13

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

15/32" OD, 1" Free Length

1шт.

14

86584050

IDLER

Plastic

1шт.

15

9828289

CHAIN,A2050, 48 Links x 31.75mm = 1524mm

#2050, 48 Pitches, Drive, Includes: (1) 25193 Connector Link

1шт.

16

NSS

NOT SOLD SEPARAT

Pickup, Standard

1шт.

17

NSS

NOT SOLD SEPARAT

Tire & Wheel

2шт.

18

86553570

SPRING

Extension

2шт.

19

87055442

EYEBOLT

G2, 1/2"-13 x 8 1/4"

2шт.

20

87021048

SPACER

2шт.

21

86643939

SPACER

5/8" Thk

2шт.

22

87017232

SHIELD

1шт.

23

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

1шт.

25

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

26

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

27

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

5шт.

29

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

30

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

31

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

32

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

7шт.

33

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

7шт.

34

825-1408

NUT,M8, Cl 8

2шт.

35

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

36

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

37

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

38

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

39

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

40

825-1412

NUT,M12, Cl 8

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

4шт.

42

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

43

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

44

832-46410

NUT,M10 x 1.5, Cl 8

12шт.

45

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

46

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

47

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

48

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

49

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

50

495-21038

WASHER,5/16"

3шт.

51

495-21056

WASHER,1/2"

1шт.

52

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

20шт.

53

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

12шт.

54

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

55

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Hardened, 3/8"

4шт.

56

495-11034

WASHER,5/16", SAE

1шт.

57

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

58

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

2шт.
