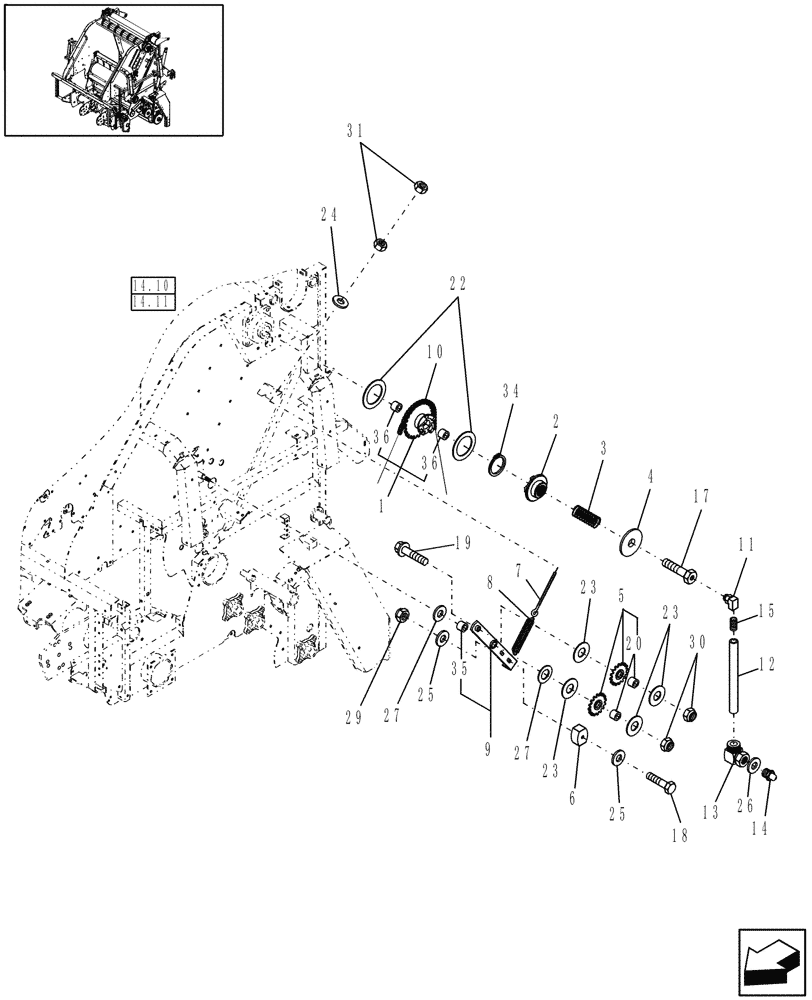

Запчасти Case IH RB564 (12.14) - APRON & CLUTCH DRIVE (12) - MAIN FRAME

1

87032323

SPROCKET

Half & Sprocket, 22T, 2.000" Bore

1шт.

2

9621888

CLUTCH

Half

1шт.

3

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

4

9829364

CAP COVER

1шт.

5

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

5

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

6

87030996

IDLER

Plastic

2шт.

7

183356

EYEBOLT,3/8" - 16 x 10" L

G2, 3/8"-16 x 10-1/8"

1шт.

8

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

9

86582659

ARM

1шт.

10

9804060

CHAIN,80, 158 Links x 25.4mm = 4013.2mm

RC80, 1"-pitch, 158 Pitches, Includes: Ref. 16

1шт.

11

691873

ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT

90°, Swivel

1шт.

12

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic

1шт.

Cut to Size Required

1шт.

13

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

1шт.

14

86050275

LUBE NIPPLE

1/8" NPT Female

1шт.

15

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 37 & 38

1шт.

16

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

RC 80K

1шт.

Not Illustrated

1шт.

17

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

Cap, HH, M12 x 1.75 x 40, W/ Hole Drilled Lenghwise

1шт.

18

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

19

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

20

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

22

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

Hardened, M45

1шт.

23

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

24

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

25

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

26

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

27

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

29

100038

NUT,M12 x 1.75, Cl 8

1шт.

30

86000441

NUT,M16 x 2.0, Cl 8

Prevailing Torque

2шт.

31

9628503

NUT,3/8"-16, G5

2шт.

34

45440

SNAP RING,#162, Ext

1шт.

35

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.

36

86601368

BUSHING

Solid, 1.750" ID x 2.000" OD

2шт.

37

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

38

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.
