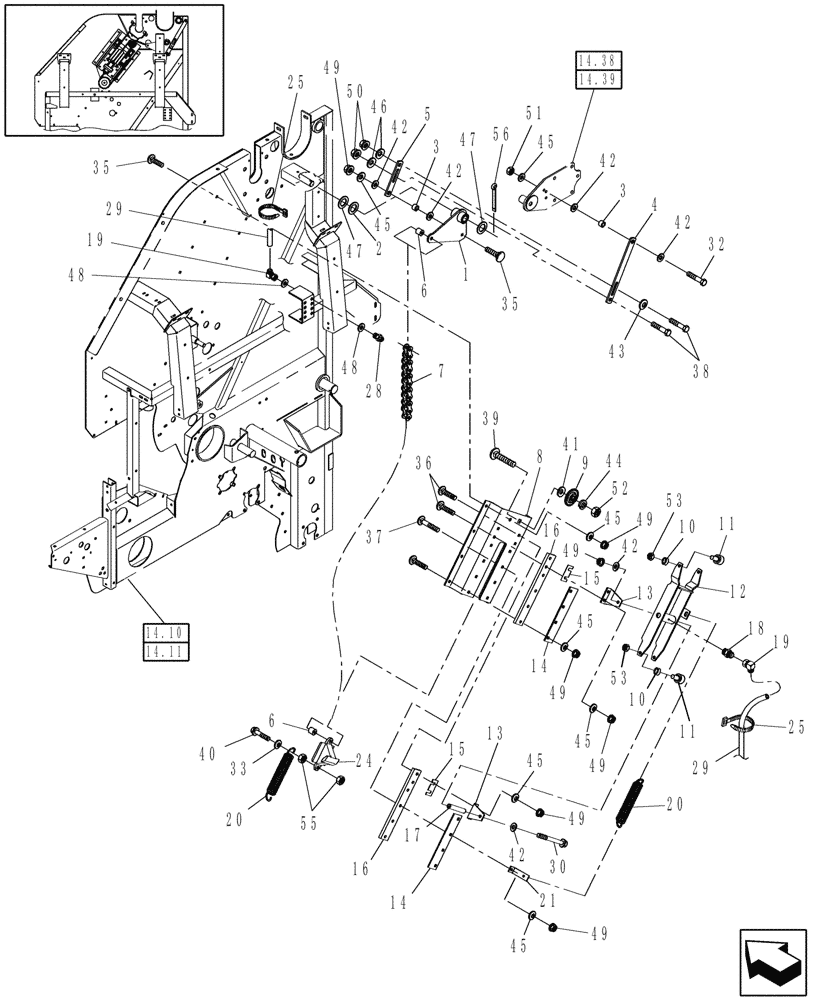

Запчасти Case IH RB564 (12.10[1]) - DECLUTCH, P.I.N. Y8N039443 & PRIOR (12) - MAIN FRAME

1

86624729

ARM

1шт.

2

134463

WASHER,.030" Thk

1шт.

3

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

Split

1шт.

4

86636884

BAR

1шт.

5

86636886

BAR

1шт.

6

86636763

HUB

3шт.

7

9617629

CHAIN,41 Links x 12.7mm Pitch = 520.7mm L

ISO 1275, Riveted-Type, 41 Pitches, Includes: Ref. 57

1шт.

8

87020601

CHANNEL

1шт.

9

103243

DRIVEN SPROCKET

18T, Idler

1шт.

10

86636890

SPACER

6шт.

11

86617019

CAM FOLLOWER

6шт.

12

87017693

FORK

1шт.

13

86636785

ANGLE

2шт.

14

86636784

BAR

2шт.

15

86636889

SHIM

1шт.

16

86636874

BAR

2шт.

17

86636660

TUBE,0.75" OD x 4.50" L

1шт.

18

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

Straight

1шт.

19

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

2шт.

20

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

2шт.

21

86636797

ANGLE

1шт.

24

86636998

BLOCK

Cam

1шт.

25

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

28

86050275

LUBE NIPPLE

1/8" NPT, Female

1шт.

29

87014413

TUBE,4.80 mm OD x 1850 mm L

Lube Line, 3/16" x 6'

1шт.

Cut to Size Required

1шт.

30

331168

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

32

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

33

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

35

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

9шт.

36

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

11шт.

37

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

38

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

39

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

40

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

41

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

42

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

43

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

44

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

45

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

46

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

47

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

48

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

49

9804278

FLANGE NUT,M10 x 1.5, Cl 8

22шт.

50

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

51

100016

NUT,M10 x 1.5, Cl 8

1шт.

52

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

53

280474

NUT,7/16"-20, GC

6шт.

55

9706685

NUT,M12 x 1.75, Cl 8

2шт.

56

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

57

9828102

CONNECTING LINK

1шт.

Not Illustrated

1шт.
